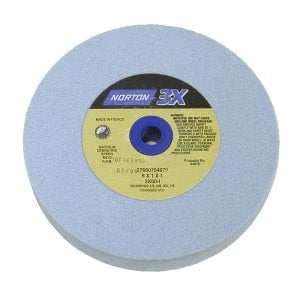

Norton 076607-05413 Bench Pedestal Grinding Wheel 6x1x1 in

Product Description

The NORTON 076607-05413 is a high-speed bench and pedestal grinding wheel built for demanding material removal and tool sharpening tasks. Constructed from 3X Blue Ceramic Alumina abrasive at K-Grade hardness, it delivers consistent cutting action and extended wheel life compared to standard aluminum oxide wheels. Measuring 6 inches in diameter, 1 inch wide, with a 1-inch arbor bore, this wheel mounts to standard bench and pedestal grinders found in maintenance shops, fabrication facilities, and trade service areas. It is suited for grinding ferrous metals, tool steel, and high-speed steel tooling.

This wheel is designed for use on stationary bench grinders and pedestal grinders in industrial, commercial, and trade shop environments. Typical applications include sharpening drill bits, lathe tools, chisels, and other cutting tools, as well as light stock removal on steel workpieces. The ceramic alumina abrasive makes it particularly effective on hardened steels and tool steels where cooler cutting and longer wheel life are priorities. Maintenance technicians, machinists, and tool-and-die tradespeople are the primary installers and users of this product.

Key Features

• 3X Blue Ceramic Alumina abrasive for cooler cutting and extended wheel life
• K-Grade hardness rating provides firm bond suitable for tool grinding and light stock removal
• High-speed rated construction for safe operation on bench and pedestal grinders
• 6 inches x 1 inches x 1 inches (diameter x width x bore) fits standard grinder spindles
• Consistent abrasive grain structure supports repeatable edge geometry on cutting tools

Compatibility

Designed as an OEM-style replacement or upgrade wheel for standard bench and pedestal grinders accepting a 6-inch diameter, 1-inch wide wheel with a 1-inch arbor bore.

Installation Notes

Bench and pedestal grinding wheels must be installed by a qualified technician following ANSI B7.1 safety standards for abrasive wheel mounting. Always de-energize and lock out the grinder before changing wheels. Inspect the wheel for cracks or chips using the ring test before mounting, and never exceed the maximum RPM stamped on the wheel. Use proper flanges and blotters as required; do not over-tighten the arbor nut.

Technical Specifications

• Abrasive Type: 3X Blue Ceramic Alumina
• Grade: K
• Wheel Type: Bench and Pedestal
• Diameter: 6 inches
• Width: 1 inch
• Arbor Bore: 1 inch
• Speed Rating: High Speed
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-05413
