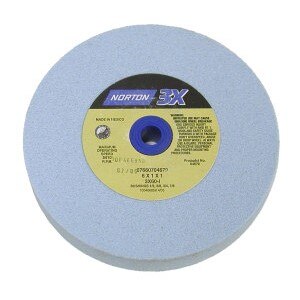

Norton 076607-05412 Bench Pedestal Grinding Wheel 6x3/4x1

Product Description

The NORTON 076607-05412 is a high-speed bench and pedestal grinding wheel engineered for demanding shop applications. Built with Premium 3X Blue Ceramic Alumina abrasive in a K-Grade hardness rating, this wheel delivers consistent stock removal and long service life on ferrous metals. It measures 6 inches in diameter, 3/4 inches wide, and carries a 1-inch arbor bore, making it a standard fit for most bench and pedestal grinders in that size class. Licensed machinists, tool-and-die makers, fabricators, and maintenance technicians are the typical users of this wheel in industrial and commercial shop environments.

This wheel is suited for bench grinder and pedestal grinder setups used in machine shops, fabrication facilities, and maintenance departments. The ceramic alumina abrasive is well-matched to tool sharpening, weld cleanup, deburring, and general stock removal on steel and other ferrous workpieces. Its high-speed rating makes it appropriate for standard single-phase or three-phase bench grinder motors operating at rated RPM.

Key Features

• Premium 3X Blue Ceramic Alumina abrasive for aggressive, consistent cutting action
• K-Grade hardness rating for balanced wheel wear and workpiece control
• 6 inches x 3/4 inches x 1-inch arbor bore fits standard bench and pedestal grinders
• High-speed rated for safe operation at grinder-rated RPM
• Sold individually (each)

Compatibility

Designed as a standard replacement or upgrade wheel for bench grinders and pedestal grinders accepting a 6-inch diameter, 3/4-inch wide wheel with a 1-inch arbor bore.

Installation Notes

Wheel mounting and dressing should be performed by a qualified machinist or maintenance technician following ANSI B7.1 safety standards for abrasive wheels. Always power down and lock out the grinder before removing or installing a wheel. Inspect the wheel for cracks or chips before mounting and perform a ring test as required by safe grinding practices. Never exceed the maximum RPM marked on the wheel.

Technical Specifications

• Abrasive Type: Premium 3X Blue Ceramic Alumina
• Grade: K
• Wheel Diameter: 6 inches
• Wheel Width: 3/4 inches
• Arbor Bore: 1 inch
• Application Speed: High Speed
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-05412
