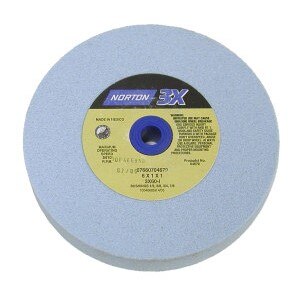

Norton 076607-04659 Bench Pedestal Grinding Wheel 8x1x1

Product Description

The NORTON 076607-04659 is a high-speed bench and pedestal grinding wheel built with Premium 3X Blue Ceramic Alumina abrasive in an I-Grade bond hardness. The ceramic alumina grain is engineered for cool, fast cutting, making it well-suited for edge work, tool sharpening, and general metal stock removal on stationary bench or pedestal grinders. At 8 inches in diameter with a 1-inch face width and a 1-inch arbor bore, this wheel fits a wide range of standard bench and pedestal grinder setups commonly found in trade shops, maintenance departments, and fabrication environments.

This wheel is intended for use on bench grinders and pedestal grinders in industrial, commercial, and trade shop settings. It is appropriate for grinding ferrous metals, tool steel, and similar materials where surface finish and material removal rate both matter. The I-Grade bond hardness offers a medium-hard wheel that retains grain well under moderate to heavy grinding pressure, reducing wheel wear and dressing frequency during high-volume use.

Key Features

• Premium 3X Blue Ceramic Alumina abrasive for fast, cool cutting action
• I-Grade bond hardness provides medium-hard wheel retention for longer wheel life
• High-speed rated construction suitable for standard bench and pedestal grinder RPM ranges
• 8-inch diameter with 1-inch face and 1-inch arbor bore fits common stationary grinder spindles
• Suited for ferrous metal grinding, tool sharpening, and stock removal applications

Compatibility

Designed as a replacement or standard grinding wheel for bench grinders and pedestal grinders that accept an 8-inch diameter wheel with a 1-inch arbor bore and 1-inch face width.

Installation Notes

Grinding wheel installation should be performed by a qualified technician following ANSI B7.1 safety requirements for the use, care, and protection of abrasive wheels. Always power down and lock out the grinder before removing or mounting any wheel. Inspect the wheel for cracks or chips before mounting and perform a ring test per ANSI guidelines. Never exceed the maximum operating speed marked on the wheel, and ensure the arbor bore fits the spindle without forcing.

Technical Specifications

• Abrasive Type: Premium 3X Blue Ceramic Alumina
• Grade (Bond Hardness): I
• Wheel Diameter: 8 inches
• Face Width: 1 inch
• Arbor Bore: 1 inch
• Application: High Speed Bench and Pedestal Grinding
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-04659
