Norton 076607-04657 Bench Pedestal Grinding Wheel 8x1x1

Product Description

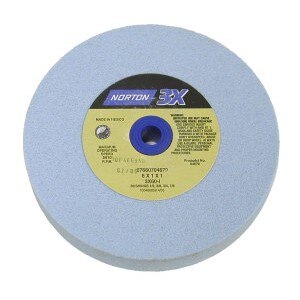

The NORTON 076607-04657 is a bench and pedestal grinding wheel engineered for high-speed grinding applications. Built with 3X Blue Ceramic Alumina abrasive in an I-Grade bond hardness, this wheel delivers consistent stock removal and extended wheel life compared to standard aluminum oxide wheels. Measuring 8 inches in diameter by 1 inch wide with a 1-inch arbor bore, it mounts directly to bench grinders and pedestal grinders in trade and shop environments. Licensed machinists, tool-and-die workers, and maintenance technicians will find this wheel suited to precision edge work and general-purpose metal grinding tasks.

This wheel is intended for use on bench grinders and pedestal grinders operating at high speed. It is well suited to commercial machine shops, maintenance and repair operations, and fabrication environments where consistent abrasive performance is required. The ceramic alumina grain is particularly effective on hard steels and difficult-to-grind alloys, making it a practical choice for tool sharpening, deburring, and surface conditioning on hardened workpieces.

Key Features

• 3X Blue Ceramic Alumina abrasive grain for longer wheel life and cooler cutting action
• I-Grade bond hardness provides a balance of grain retention and freeness of cut
• 8-inch diameter by 1-inch wide by 1-inch arbor bore fits standard bench and pedestal grinder spindles
• Rated for high-speed operation on bench and pedestal grinder setups
• Suitable for grinding hard steels, tool steels, and difficult alloys

Compatibility

Designed as an OEM-style replacement or upgrade wheel for standard bench grinders and pedestal grinders accepting an 8-inch diameter by 1-inch wide wheel with a 1-inch arbor bore.

Installation Notes

Grinding wheel installation should be performed by a qualified technician following ANSI B11.9 and OSHA 1910.215 guidelines for abrasive wheel machinery. Always power down and lock out the grinder before mounting or removing a wheel. Inspect the wheel for cracks or chips before mounting and perform a ring test to confirm integrity. Never exceed the maximum operating speed marked on the wheel, and always use proper flanges and blotters as specified by the grinder manufacturer.

Technical Specifications

• Abrasive Type: 3X Blue Ceramic Alumina
• Grade: I-Grade
• Diameter: 8 inches
• Width: 1 inch
• Arbor Bore: 1 inch
• Application: High Speed Bench and Pedestal Grinding
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 076607-04657
