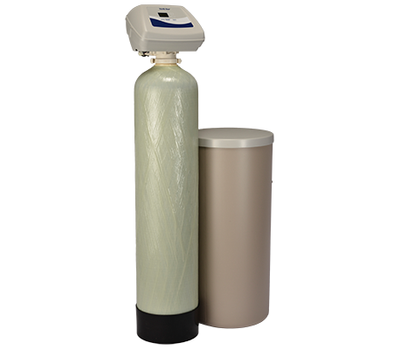

NORTH STAR NST70ED1 70,000 Grain 14 GPM Ultra Demand 2-Tank Water Softening System

Product Description

The NORTH STAR NST70ED1 is a 70,000 grain water softening system designed for residential use. This system operates at a flow rate of fourteen gallons per minute and has a two-tank design that ensures consistent water conditioning.

• Uses Auto-Sense Technology for efficient salt and water regeneration.
• Suitable for households with high water hardness levels and up to nineteen parts per million of clear water iron.
• Quick setup for immediate use.

Product Highlights

This unit features a high flow valve that supports up to one and one-quarter inch plumbing, providing strong water pressure. It also includes unique HE regeneration, which enhances the cleaning process of the resin bed.

Product Information

Standard Information

• Brand: NORTH STAR
• Model Number: NST70ED1

Technical Specifications

• Type: Point of Entry
• Height: 65.75 inches
• Weight: 159 lb.
• Capacity: 70,000 grain
• Flow Rate: 13.5 GPM
• Pipe Size: 1 inch
• Power Source: 120 V ac
• Maximum Pressure Rating: 125 PSI
• Maximum Operating Temperature: +120 deg F
• Minimum Operating Temperature: +40 deg F
• Connection Size: 1 inch
• Connection Type: MNPT
• Specifications Met: NSF Certified
• Contaminants Removed: Hardness Minerals
• Additional Details: Used With Air Gap Drain
