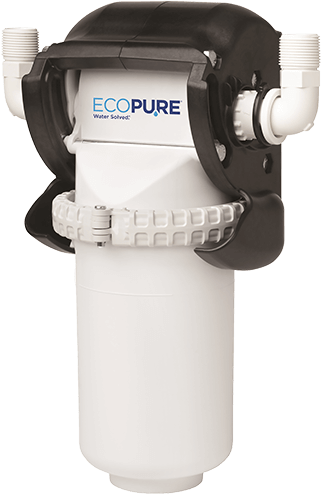

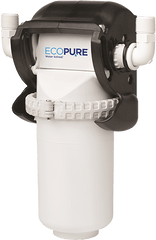

North Star epawcs Salt-free Anti-scale System 4.0 Gpm

Product Description

The NORTH STAR epawcs is a salt-free, whole-house anti-scale system designed for residential water treatment. It uses anti-scale filter media to condition hard water without the use of salt or chemicals, reducing scale buildup inside pipes, fixtures, and water-using appliances. The system delivers treated water to every outlet in the home at a flow rate of 4.0 gallons per minute (GPM). With 1-inch MNPT inlet and outlet connections and a compact footprint, it installs on the main supply line and services the entire household. Filter media requires replacement every 6 months to maintain performance. Licensed plumbers and experienced DIYers typically handle installation.

The epawcs is suited for residential applications where hard water scale is causing buildup in supply lines, water heaters, fixtures, and appliances. It is sized for whole-house service, making it appropriate for typical single-family homes. The system operates across a wide range of supply conditions, functioning at pressures from 30 to 100 psi and water temperatures from 40 to 100 degrees F, covering most municipal and well-water supply scenarios. No drain line, electricity, or brine tank is required, simplifying installation compared to ion-exchange softener systems.

Key Features

• Salt-free anti-scale media reduces hard water mineral deposits without adding sodium to the water supply
• 4.0 GPM flow rate supports whole-house demand in residential applications
• 1-inch MNPT inlet and outlet connections for direct in-line installation on main supply line
• Operating pressure range of 30 to 100 psi accommodates standard residential water supply
• Compact 12.0 x 16.0 inch (H x W) footprint for installation in tight utility spaces
• 6-month filter life with straightforward media replacement

Compatibility

Designed as an OEM-style replacement and direct-fit anti-scale system for residential whole-house water treatment installations requiring a salt-free conditioning solution.

Installation Notes

Installation on the main cold-water supply line should be performed by a licensed plumber in compliance with local plumbing codes and IPC guidelines. Shut off the main water supply and relieve system pressure before cutting into the supply line. Use appropriate thread sealant on all NPT connections and verify the flow direction arrow on the housing is oriented correctly before pressurizing the system. Do not install on hot water lines or in locations where water temperature or pressure may exceed the rated operating range.

Technical Specifications

• Flow Rate: 4.0 GPM
• Filter Life: 6 months
• Inlet / Outlet Connection: 1-inch MNPT
• Operating Temperature: 40 to 100 degrees F / 5 to 38 degrees C
• Operating Pressure: 30 to 100 psi / 207 to 690 kPa
• Product Dimensions (H x W): 12.0 inches x 16.0 inches
• Weight: 11 pounds
• Warranty: 1-year parts
• Model Number: EPAWCS
• Part Number: EPAWCS8

Standard Information

• Brand: NORTH STAR
• Manufacturer Part Number: epawcs
