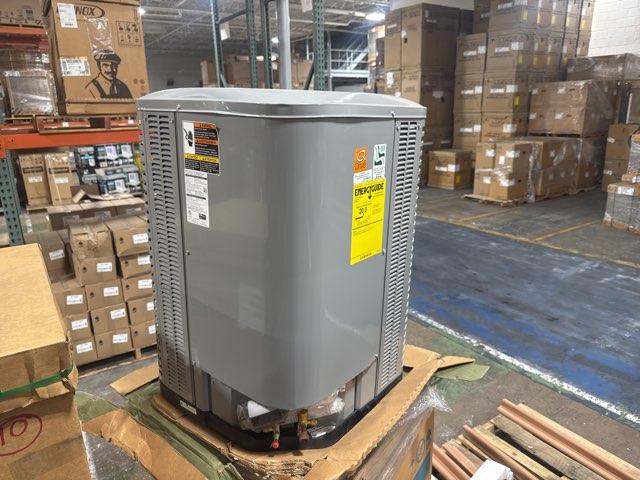

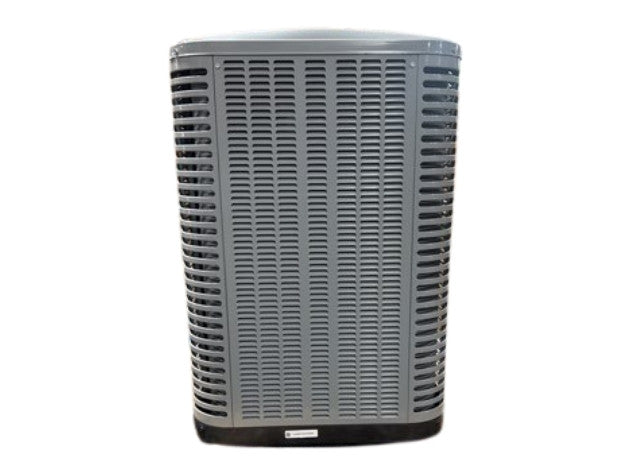

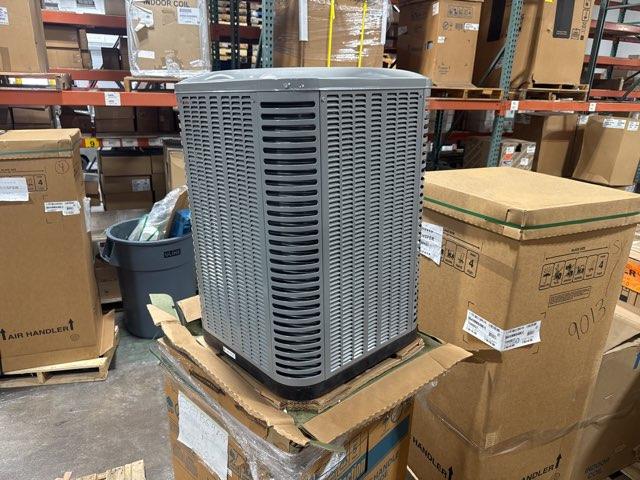

Nortek Global Hvac FSA1BG4MVRN24KP 2 Ton Inverter Ac 19 SEER2

Product Description

The NORTEK GLOBAL HVAC FSA1BG4MVRN24KP is a 2-ton inverter-driven split-system air conditioner rated at 19 SEER2 and 12 EER2. It operates on a 208-230 volt, single-phase, 60 Hz circuit and uses R410A refrigerant. The inverter-stage compressor modulates capacity to match the actual cooling load, reducing short-cycling and improving efficiency compared to single-stage equipment. Liquid and suction connections are sweat-type, sized at 3/8 inches and 3/4 inches respectively. Licensed HVAC technicians handle installation as part of a split-system pairing with a compatible air handler or coil.

This condensing unit is intended for residential split-system cooling applications. It ships with a factory refrigerant charge of 71 ounces of R410A. The non-communicating control interface means it integrates with standard 24-volt thermostat wiring rather than requiring a proprietary communicating control system. Cabinet dimensions are 37 inches tall by 22.5 inches wide by 22.5 inches deep, making it suitable for typical residential side-yard or pad-mounted installations where space is a consideration.

Key Features

• Inverter-driven compressor for variable-capacity operation and reduced energy consumption
• 19 SEER2 and 12 EER2 efficiency ratings meeting current Department of Energy standards
• Non-communicating controls compatible with standard 24-volt thermostats

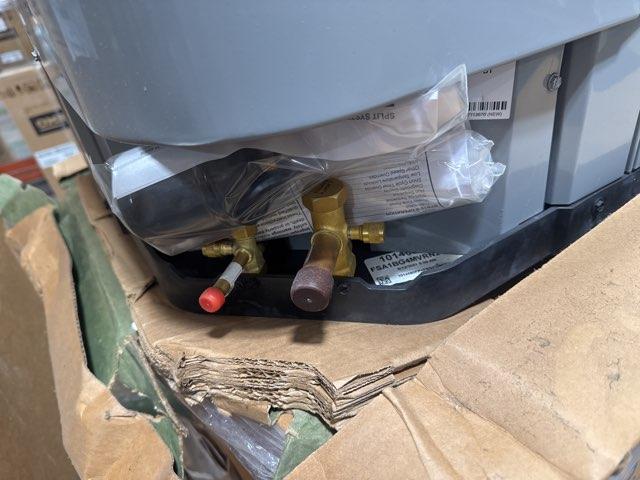

• Sweat-type refrigerant connections: 3/8 inches liquid line, 3/4 inches suction line
• Factory-charged with 71 ounces of R410A refrigerant
• Single-phase 208-230 volt, 60 Hz power supply

Compatibility

Designed as an OEM-style residential split-system condensing unit intended to pair with a compatible evaporator coil or air handler in a split-system cooling configuration.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 certification for handling R410A refrigerant. Disconnect and lock out all electrical power before making any connections. The unit should be set on a level pad and secured per local mechanical code requirements. Verify that the selected air handler or evaporator coil is rated for inverter-compatible operation before commissioning the system.

Technical Specifications

• Capacity: 2 Tons
• SEER2: 19
• EER2: 12
• Stage: Inverter
• Refrigerant: R410A
• Factory Charge: 71 oz
• Circuit Voltage: 208-230 volts
• Phase: Single
• Frequency: 60 Hz
• Liquid Line Connection: 3/8 inches sweat
• Suction Line Connection: 3/4 inches sweat
• System Controls: Non-communicating
• Cabinet Height: 37 inches
• Cabinet Width: 22.5 inches
• Cabinet Depth: 22.5 inches
• Weight: 166 pounds

Standard Information

• Brand: NORTEK GLOBAL HVAC
• Manufacturer Part Number: FSA1BG4MVRN24KP
