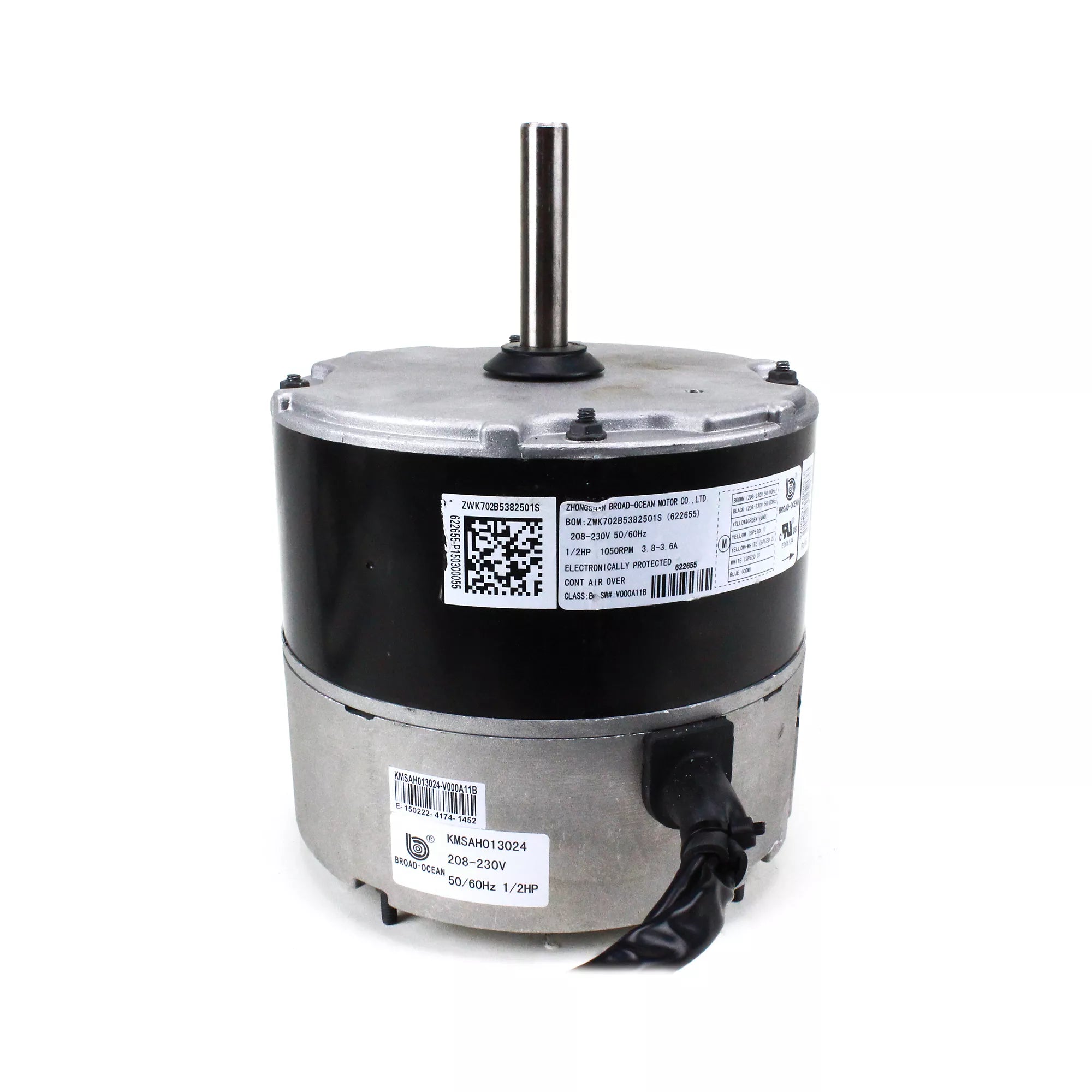

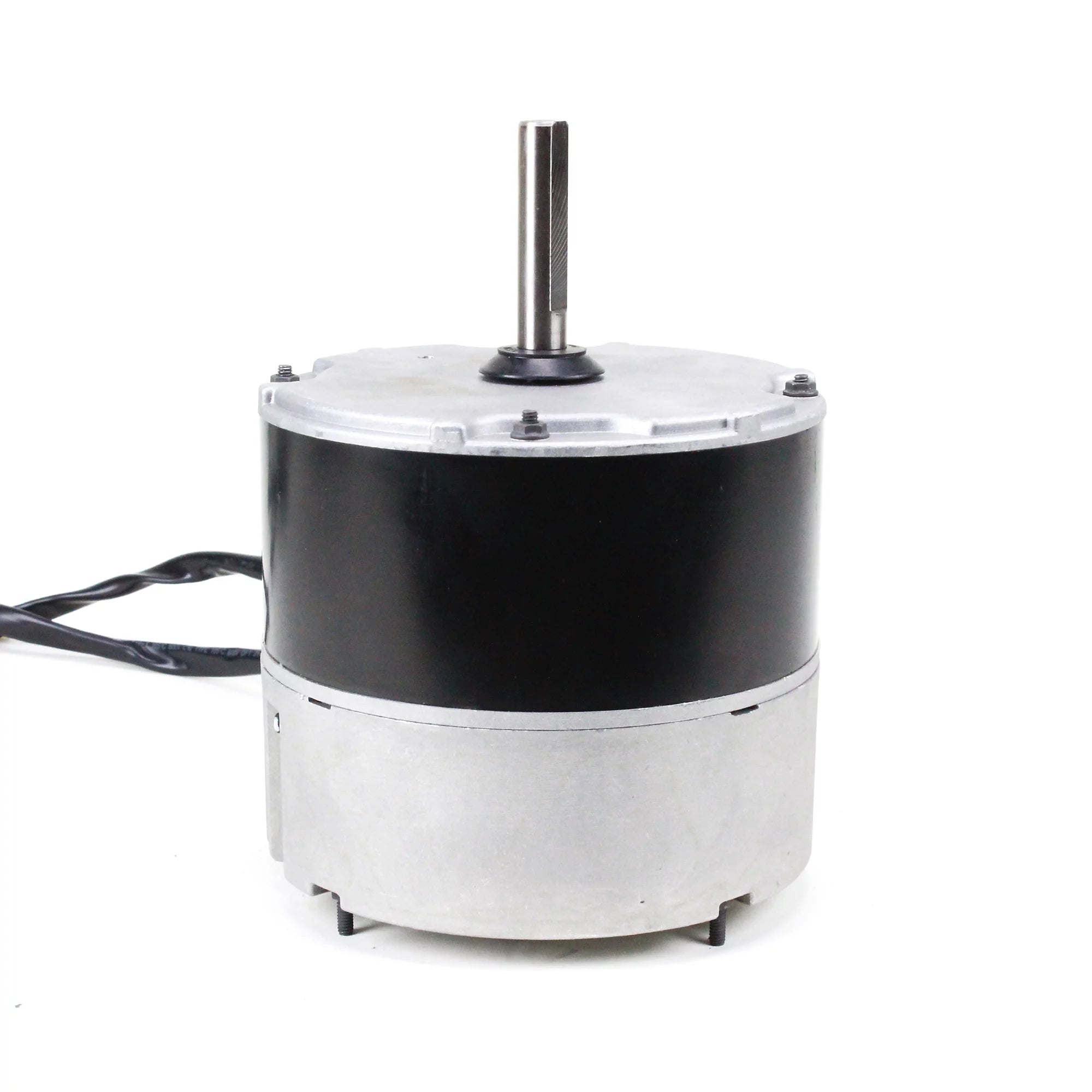

Nortek Global Hvac 922022 Replacement Motor DM2RF BOMC 1/2 HP CWLE Q5 P5

Product Description

The Nortek Global HVAC 922022 is a replacement motor DM2RF BOMC with 1/2 HP. This ECM motor is designed for continuous duty and features a totally enclosed air over enclosure. It operates at 208-230 VAC, 60 Hz, and 1050 RPM with clockwise rotation. The motor includes a 0.5" diameter shaft and is suitable for various HVAC applications.

• 1/2 HP ECM (Electronically Commutated Motor)
• Operates at 208-230 VAC, 60 Hz, 1050 RPM
• Totally Enclosed Air Over (TEAO) enclosure

Product Highlights

Replacement motor with 1/2 HP, ECM type, and TEAO enclosure for HVAC applications.

Product Information

Standard Information

• Brand: NORTEK GLOBAL HVAC
• Manufacturer Part Number: 922022
• Country of Origin: CHN

Technical Specifications

• Amps: 3.6-3.8
• Basis Of Rotation View: Lead End
• Bearing Type: Ball
• Brand: Nortek Global HVAC
• Cycle/Hertz: 60 Hz
• Duty: Continuous (S1)
• Motor Enclosure: Totally Enclosed Air Over (TEAO)
• Motor HP: 1/2 HP
• Motor Type: ECM (Electronically Commutated Motor)
• NEMA Frame: 48
• Number of Speeds: 3 (Three)
• Phase: Single
• Prop 65: Yes
• Protection: No Protection
• Rotation: Clockwise (CW)
• RPM: 1050
• Shaft Diameter: 0.5" (1/2")
• Shaft Length: 2.52"
• Voltage: 208-230 VAC
• MPN: 922022
