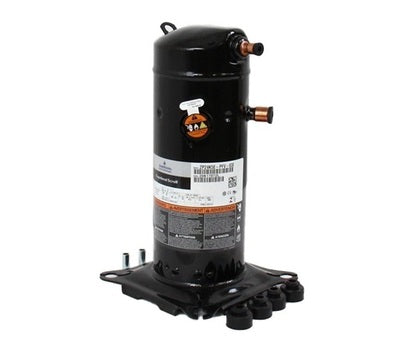

Nortek Global HVAC 921424 24,000 BTU 64 Amp 208-230V AC Scroll Compressor

Product Description

The Nortek Global HVAC 921424 is a 24,000 BTU scroll compressor designed for light commercial and residential HVAC systems. It delivers efficient operation on a 208-230V AC power supply with a locked rotor amperage of 64 amps.

• Capacitor run motor with permanent split capacitor
• Internal motor protection to prevent overheating
• Utilizes R-410A refrigerant for enhanced efficiency

Product Highlights

This compressor operates quietly at a sound level of 71 dB(A) and provides reliable performance. It is compatible with both air conditioners and heat pumps, making it versatile for various HVAC applications.

Product Information

Standard Information

• Brand: Nortek Global HVAC
• Catalog Number: 921424

Technical Specifications

• BTU Output: 24000 BTU
• Locked Rotor Amps: 64 amp
• Application: Light Commercial, Residential
• Number Of Phases: 1
• Suction Line Size: 3/4 inches
• Height: 15.27 inches
• Refrigerant Type: R-410A
• Length: 9.56 inches
• Sound Level: 71 dB(A)
• For Use With: Air Conditioner, Heat Pump
• Oil Type: POE
• Width: 9.56 inches
• Frequency Rating: 60 Hz
• Suction Fitting Type: Stub
• Voltage Rating: 208 to 230 V AC
• Weight: 57.1 lb
