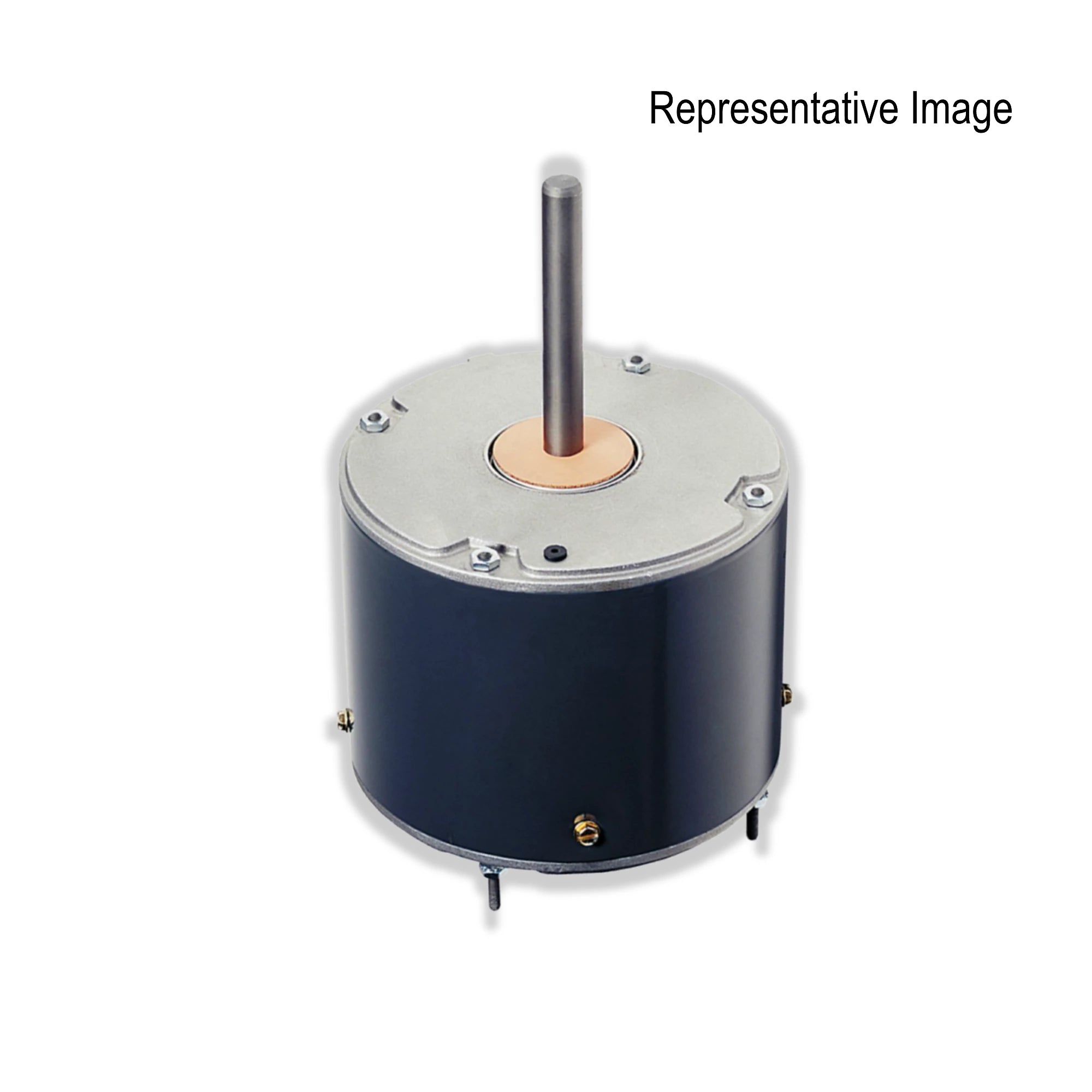

Nortek Global HVAC 621856 Condenser Fan Motor 1/8 HP 1 Speed S1BX S3QA 30-42K

Product Description

The Nortek Global HVAC 621856 Condenser Fan Motor is a reliable and efficient component for HVAC systems. It features a 1/8 horsepower, single-speed operation designed to maintain optimal performance in various air conditioning applications.

• Continuous duty motor tailored for consistent performance.
• Single-phase power with a clockwise rotation.
• Designed and manufactured in the USA, ensuring high-quality production.

Product Highlights

This motor operates at 1075 RPM and handles 208-230 VAC, making it ideal for several setups and replacements.

Product Information

Standard Information

• Model Number: NOR621856
• Brand: Nortek Global HVAC

Technical Specifications

• Motor Horsepower: 1/8 HP
• Type: PSC (Permanent Split Capacitor)
• Voltage: 208-230 VAC
• Amps: 1.25
• Phase: Single
• Rotation: Clockwise (CW)
• RPM: 1075
• Width: 7 inches
• Height: 7 inches
• Length: 14 inches
• Weight: 9 lbs
• CSA Certified: Yes
• Insulation Class: B
