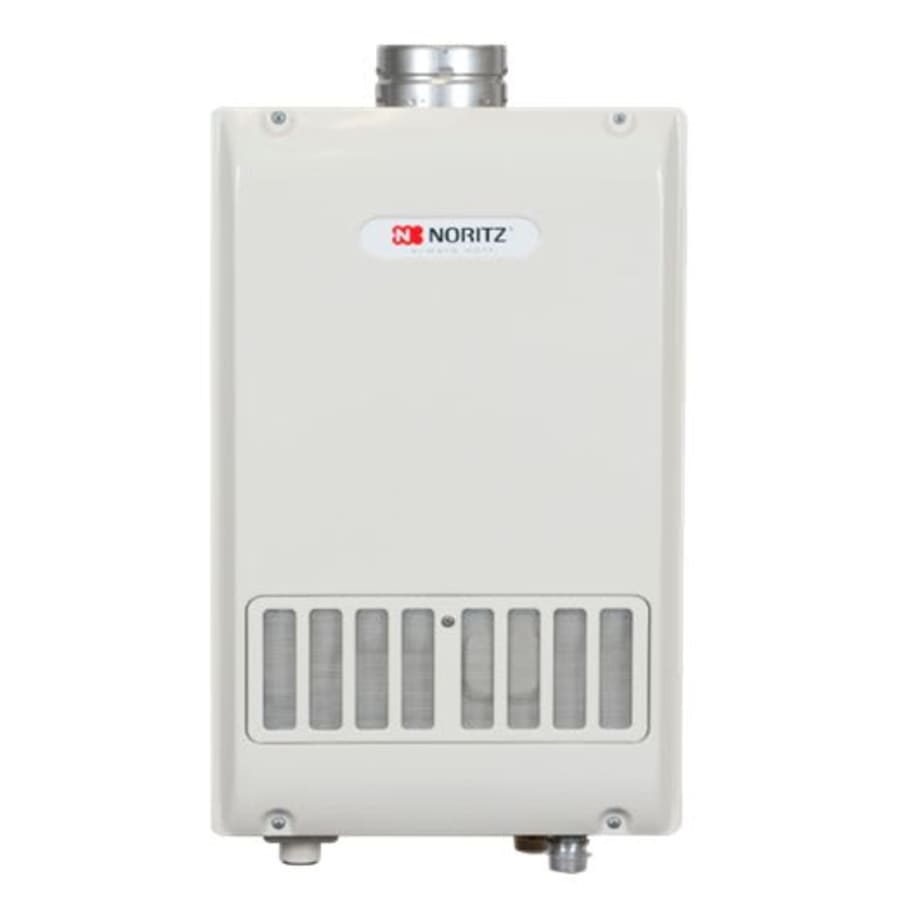

Noritz NR98-SV-NG Residential 199900 BTU Natural Gas Tankless Water Heater Power Vent

Product Description

The Noritz NR98-SV-NG is a residential tankless water heater designed with reliability and durability in mind. Perfect for any size home, even those with high hot water demand. It features commercial grade copper heat exchangers for optimal performance and is backed by a 12-year heat exchanger warranty. Includes a remote controller for adjustable temperature control.

• Designed with reliability and durability in mind
• Commercial grade copper heat exchangers
• Compact design for indoor or outdoor installation

Product Highlights

This Noritz tankless water heater is efficient, safe, and compatible with multiple unit systems. It features automatic scale detection and adjustable settings for high altitude installations.

Product Information

Standard Information

• Brand: NORITZ
• Manufacturer Part Number: NR98-SV-NG

Technical Specifications

• Fuel Type: Natural Gas
• Installation Location: Indoor (Power Vent)
• Type: Tankless Water Heater
• CSA Listed: Yes
• Frequency: 60 Hz
• Product Category: Water Heater - Tankless
• Medium: Hot Water
• Cold Water Inlet: 3/4 Inch
• Hot Water Outlet: 3/4 Inch
• NSF Certified: Yes
• Vent Type: Power Vent
• Minimum Flow Rate: 0.5 GPM
• Gas Connection Size: 3/4 Inch
• Mount Type: Wall
• Flue Connection Size: 4 Inches
• Application: Residential
• Storage Type: Tankless
• Energy Star Listed: Yes
• Includes Pump: No
• Uniform Energy Factor: 0.83
• Maximum Input Capacity: 199900 BTU
• Minimum Input Capacity: 12000 BTU
• Combustion Type: Non-Condensing
• Ultra Low NOx Emissions: Yes
• Parts Warranty: 5 Years
• Venting Category: III
• Heat Exchanger Warranty: 12 Years
• Flow Rate at 40F Temperature Rise: 8.4 GPM
• Flow Rate at 45F Temperature Rise: 7.5 GPM
• Flow Rate at 50F Temperature Rise: 6.7 GPM
• Flow Rate at 60F Temperature Rise: 5.6 GPM
• Flow Rate at 70F Temperature Rise: 4.8 GPM
• Phase: 1
• Voltage: 120 Volts
• Max Flow Rate: 9.8 GPM
• Temperature Range: 100°F - 180°F
• Condensing: No
• Freeze Protection: Yes
• Recirculation Compatible ?: Yes
• Min Gas Input (Btu): 12000
• Max Gas Input (Btu): 199900
• Thermal Efficiency: 84%
• Energy Factor: UEF 0.82
• Power Supply: 120 VAC (60 Hz)
• Current Draw (A): 1.208
• Exhaust Vent Diameter Requirements: 4"
• Tested to UL Computer Controlled Safety Standards: Yes
• Flame Sensor: Yes
• High Limit Switch: Yes
• Lightning Protection: Yes
• Overheat Cutoff Fuse): Yes
• Temperature Lockout: Yes
• Ignition Type: Direct Electronic
• Case Material: Durable Steel Casing with Polyester Coating
• Mounting Type: Wall Hung
• Package Contents: Tapping Screws, Remote Controller, Remote Controller Cord, Power Cord, Owner’s Guide, Warranty, Installation Manual
• Water Holding Capacity: 0.2 gallons
• Accessories: Keypad/Thermostat Display
• Compatible Remote Controller Part #: RC-7649M
• Isolator Valve Part #: IK-WV-200-1-xx
• Outdoor Vent Cap Part #: VC-4-1
• Pipe Cover Part #: PC-2S
• High Elevation Adjustment: Yes
• Quick-Connect Cord Part #: QC-1
• System Controller Compatible?: No
• Compatible Remote Controller Cord Part #: RC-CORD10
• Power Cord: Included in box
• ENERGY STAR® Qualified: Yes
• CSA: Yes
• NSF: Yes
• SCAQMD (55 ppm): Yes
• UPC Low Lead: Yes
