Noritz NCC199CDVLP Ncc199cdv Commercial Tankless Water Heater 199,900 BTU

Product Description

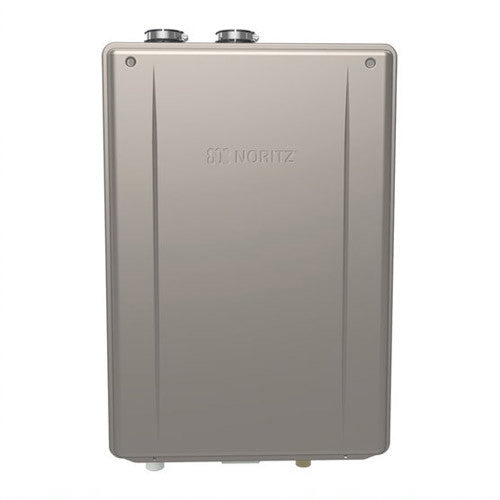

The NORITZ NCC199CDVLP is a commercial condensing tankless water heater with a maximum input of 199,900 BTUs per hour. It has a thermal efficiency of 96% and is CSA-approved for common venting up to six units. The unit features two austenite 316L stainless steel heat exchangers that resist corrosion from condensate and chloride, maximizing durability and lifespan.

• Thermal efficiency of 96%
• CSA-approved for common venting up to six units
• Two austenite 316L stainless steel heat exchangers

Product Highlights

The NCC199CDVLP is designed for durability and longevity, featuring stainless steel heat exchangers and multiple venting options.

Product Information

Standard Information

• Brand: NORITZ
• Manufacturer Part Number: NCC199CDVLP

Technical Specifications

• Residential or Commercial: Commercial
• Installation Location: Indoor & Outdoor with Vent Cap
• Exhaust Type: 2-pipe Direct Vent (SV convertible)
• Max Flow Rate: 11.1 GPM
• Flow Rate @ 50°F Rise: 8.9
• Flow Rate @ 80°F Rise: 4.9
• Temperature Range: 100-185°F
• Production Status: Active
• Condensing: Yes
• Minimum Activation Flow Rate: 0.5 GPM
• Water Quality: Treatment may be needed
• Freeze Protection: Yes
• Freeze Protection Rating - Indoor Temp: -30°F
• Recirculation Compatible ?: Yes
• New Generation Model Number: Yes
• Previous Name: NCC199
• Available Temperature Settings (with remote): 100, 105, 110, 115, 120, 125, 130, 135, 140, 145, 150, 160, 170, 185°F
• Default Temperature Setting (without remote): 120°F
• Default Temperature Program Setting Options (without remote): 120, 130, 140, 185°F
• Production Date Range: 11/2019 - Present
• Min Gas Input (Btu): 18,000
• Max Gas Input (Btu): 199,900
• Height (in): 27
• Width (in): 18.5
• Depth (in): 12.8
• Thermal Efficiency: 96%
• Energy Factor: .98 UEF
• Quick-Connect Compatible?: Yes
• Cold Water Connection Size (in): 3/4
• Hot Water Connection Size (in): 3/4
• Gas Connection Size (in): 3/4
• Power Supply: 120 VAC
• Current Draw (A): 2.55
• Exhaust Vent Diameter Requirements: 2" or 3"
• Exhaust Vent Material Requirements: PVC or CPVC
• Max Vent Length with 1 elbow: 65’ with 2" or 150’ with 3"
• Vent Termination Clearances to Any Building Opening (ft): Below = 1’, Side = 1’, or Above = 1’
• Gas Supply Pressure Range: 8-14" WC
• Min Gas Line Size: 3/4" up to 59’
• Water Pressure Rating (psi): 15-150
• Case Clearances (in): Top = 12", Front = 4", Sides = 3", Back = 0"
• Combustion Air Requirements - using Indoor Air: 200 in² (Only if SV conversion)
• Combustion Air Requirements - using Outdoor Air: 100 in²(Only if SV conversion)
• Head Loss at 2 gpm: 7.1 ft
• Cold Connection Height: 2.2"
• Power Consumption w/out Freeze Prevention: 80 Watts
• Power Consumption w/Freeze Prevention: 114 Watts
• Flow Meter Alarm: Yes
• Service Reminder: Yes
• Condensate Handling Method?: NC-1 or NT20A
• Noise Rating (dB): 52 dB
• Tested to UL Computer Controlled Safety Standards: Yes
• Flame Sensor: Yes
• High Limit Switch: Yes
• Lightning Protection: Yes
• Overheat Cutoff Fuse): Yes
• Temperature Lockout: Yes
• Ignition Type: Direct Electronic
• Case Material: Durable Steel Casing
• Flue Collar Material: PP
• Primary Heat Exchanger Material: Stainless Steel
• Secondary Heat Exchanger Material: Stainless Steel
• Mounting Type: Wall Hung
• Package Contents: Anchoring Screws, Remote Controller, Remote Controller Cord, Owner’s Guide, Warranty, Installation Manual, Drain hose(with clamp), Wall Mounting Bracket
• Water Holding Capacity: 0.82 gal
• Accessories: Keypad/Thermostat Display
• Compatible Remote Controller Part #: RC-9018M
• Isolator Valve Part #: IK-WV-200-1-XX
• Freeze Protection Kit Accessory: N/A
• Outdoor Vent Cap Part #: N/A
• Pipe Cover Part #: PC-6S
• Recess Box Part #: N/A
• High Elevation Adjustment: Yes
• Quick-Connect Cord Part #: QC-2
• System Controller Compatible?: Yes
• System Controller Part #: SC-301-6M, SCU-301-12M
• Remote Controller Cord: Included
• Compatible Remote Controller Cord Part #: RC-CORD10
• Power Cord: Included attached
• ENERGY STAR® Qualified: Yes
• CSA: Yes
• NSF: Yes
• SCAQMD (20 ppm): Yes
• SCAQMD (55 ppm): No
• UPC: Yes
• UPC Low Lead: Yes
