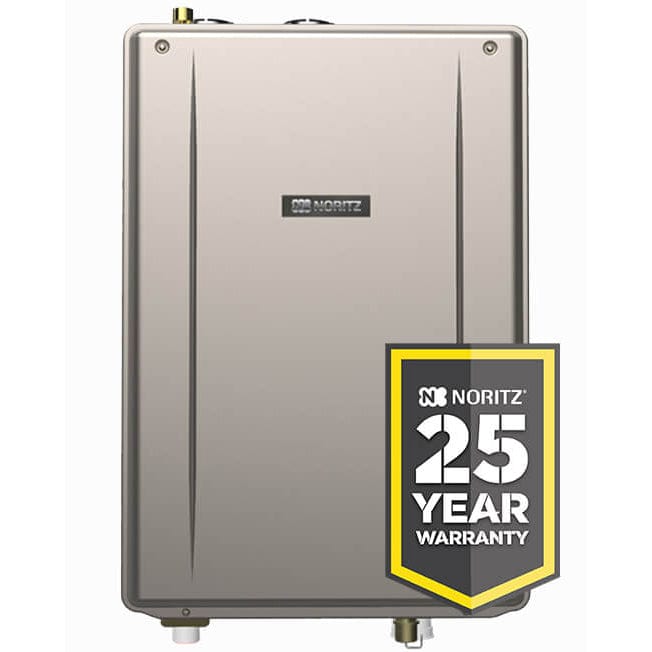

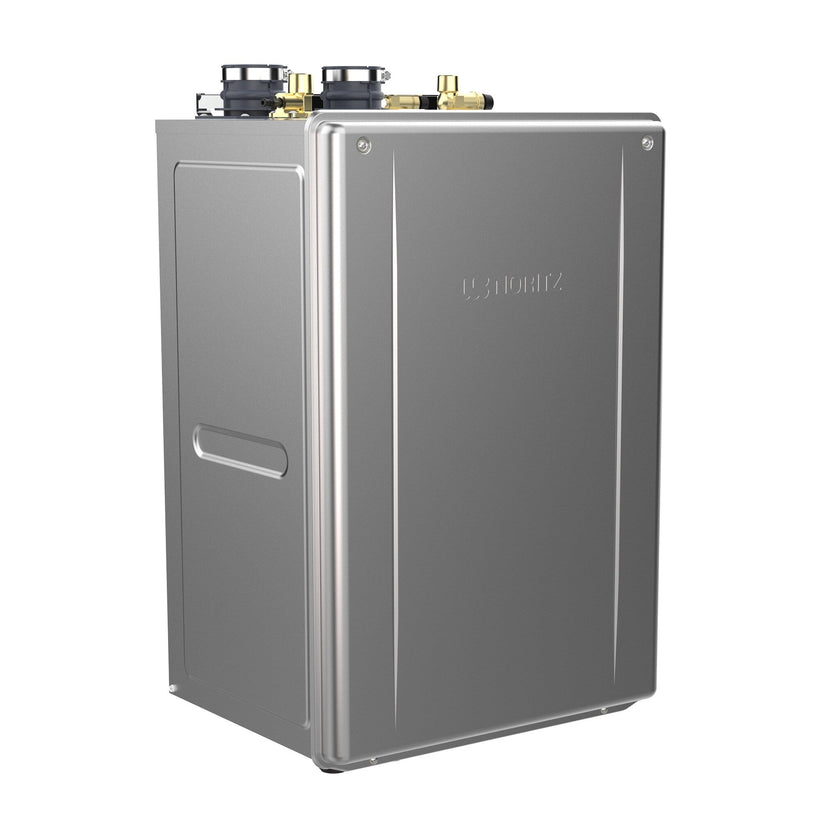

Noritz EZ98DV-NG EZ98DV-NG 50 Gallon Residential Condensing Water Heater Max 180,000 BTU 9.8 GPM 120V with Isolation Valve Kit

Product Description

The Noritz EZ98DV-NG is an EZ Series residential condensing water heater with a 50-gallon capacity and a maximum BTU of 180,000, operating at 9.8 GPM and 120V, and includes an isolation valve kit. Designed with top-mounted connections, it accommodates various installation scenarios. The heat exchanger comes with a 25-year limited warranty.

• Standard Input 18,000-180,000 BTUh / 0.5 - 9.8gpm (EZ98)
• Uniform Energy Factor (UEF) - 0.95 (NG) / 0.95 (LP)
• Compact Design - ANSI Z21.10.3/CSA 4.3 certified design that can be wall-mounted indoors or installed outdoors using the optional Vent Cap

Product Highlights

This Noritz water heater features a stainless steel heat exchanger, multiple venting options, direct electronic ignition, and is Wi-Fi capable.

Product Information

Standard Information

• Brand: Noritz
• Manufacturer Part Number: NORITZ-EZ98DV-NG

Technical Specifications

• Brand: Noritz
• Standard Input: 18,000-180,000 BTUh / 0.5 - 9.8gpm (EZ98)
• Uniform Energy Factor (UEF): 0.95 (NG) / 0.95 (LP)
• Wi fi Capable: Yes
• Heat Exchanger: Manufactured with high qua lity stainless steel
• Venting Options: Available in Direct Vent m odel that c a n use either 2” or 3” Schedule 40 PVC/CPVC , flexible PP vent, or installed outdoors with Vent Cap.
• Direct Electronic Ignition: Yes
• Compatible with 1/2” gas pipe: See installation manual
• Multi-System Capability: Units can be linked together by using the optional 2-unit Quick Connect for twice the hot water capacity
• Fully Modulating: BTU input range from 18,000 to 360,000/399,800 BTUh (with Quick Connect) with stable combustion provided by gas venturi and pre-mix burner. Each individual unit 10/11:1 Turndown Ratio
• Temperature Controls: Includes remote thermostat that can precisely adjust the output temperature from 100°F to 140°F
• Safety Devices: Flame Sensor, Overheat Prevention Device, Lightning Protection Device, Freeze Protection, Condensa te Overfill
• Approvals: CSA, UPC , NSF, Low NOx Approved By SCAQMD (Rule 1146.2)
