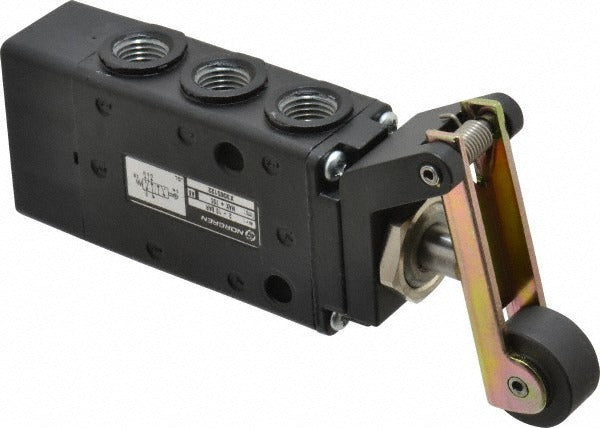

Norgren X3065122 Packed Spool Roller Lever Valve 1/4 in

Product Description

The NORGREN X3065122 is a mechanically operated directional control valve built around a packed spool design with a roller lever actuator. It is a 5-port, 2-position valve with spring return, sized at 1/4 inch NPT for both inlet and outlet connections. With a Cv rating of 0.98 and a maximum working pressure of 10 bar, it is suited for controlling pneumatic actuators, cylinders, and other compressed-air-driven equipment. Licensed pneumatic technicians and industrial maintenance professionals install this valve in line-mounted or manifold pneumatic circuit applications.

This valve fits residential and commercial pneumatic control systems where mechanical actuation is required. The roller lever actuator trips the valve when a cam, machine arm, or moving carriage makes physical contact, making it a common choice for end-of-travel detection and sequencing in automated pneumatic circuits. It operates across a working temperature range of 32 degrees F to 158 degrees F, making it suitable for standard indoor industrial environments.

Key Features

• Packed spool design for reliable, low-leakage directional control
• Roller lever actuator for mechanical cam or machine-contact operation
• Spring return ensures fail-safe return to home position on actuator release
• 1/4 inch NPT inlet and outlet for direct pipe or tube fitting connection
• 0.98 Cv rating supports adequate flow capacity for small-bore pneumatic actuators
• 5-port, 2-position configuration suitable for double-acting cylinder control

Compatibility

Designed as an OEM-style replacement or direct-fit valve for pneumatic control circuits requiring a 5-port, 2-position mechanically operated spool valve with 1/4 inch NPT connections and spring return.

Installation Notes

Installation should be performed by a qualified pneumatic technician or industrial maintenance professional. Depressurize and lock out the pneumatic supply line before removing or installing the valve. Verify thread engagement on NPT connections and use appropriate thread sealant compatible with the system media. Confirm actuator roller alignment with the cam or trip mechanism before returning the system to service.
