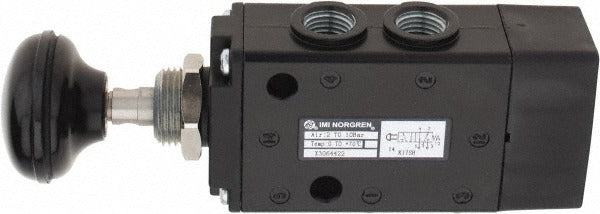

Norgren X3064422 Manually Operated Valve 3/8 Npt Button

Product Description

The NORGREN X3064422 is a manually operated directional control valve designed for pneumatic systems requiring precise, on-demand flow control. The valve features a packed spool design with a button actuator and spring return, giving the operator direct manual control over airflow direction. With a Cv rating of 0.98 and a 3/8 inch NPT outlet, it is well-suited for applications where compact size and reliable actuation matter. This valve is typically installed by pneumatic system technicians, maintenance mechanics, and industrial service professionals working with compressed air circuits.

The X3064422 is intended for use in light to medium-duty pneumatic control applications. Its two-position operation, spring-return button actuation, and NPT thread configuration make it a practical choice for compressed air distribution panels, pneumatic machine controls, and inline manual shutoff or diverting duties. The valve operates across a temperature range of 32 degrees F to 158 degrees F, making it appropriate for standard indoor industrial and commercial environments.

Key Features

• Packed spool valve design for reliable sealing and smooth actuation
• Button actuator with spring return for two-position manual control
• 3/8 inch NPT outlet for straightforward threaded inline installation
• Cv rating of 0.98 for consistent, predictable airflow performance
• Operating temperature range of 32 degrees F to 158 degrees F
• Compact black body suitable for panel or inline mounting in tight spaces

Compatibility

Designed as an OEM-style replacement or direct-fit manual control valve for pneumatic systems using 3/8 inch NPT threaded connections and requiring a two-position, spring-return button-actuated packed spool valve.

Installation Notes

Installation should be performed by a qualified pneumatic technician or industrial maintenance mechanic. Depressurize and lock out the compressed air supply completely before removing any existing valve or making connections. Apply appropriate thread sealant to NPT fittings and verify all connections are leak-free before returning the system to service. Follow applicable OSHA lockout/tagout and local compressed air safety codes during service.
