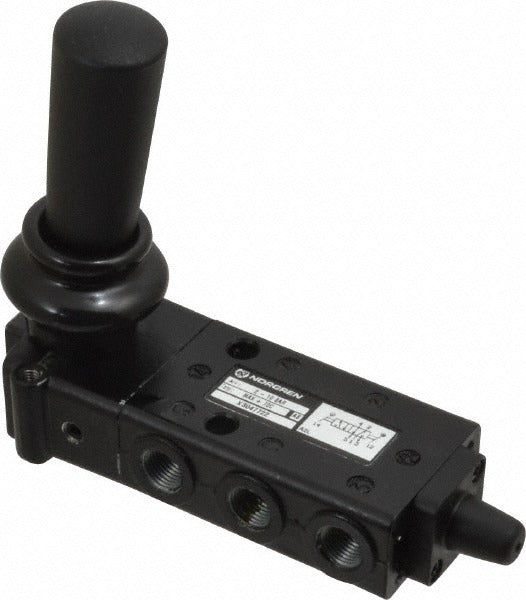

Norgren X3047722 Manual Valve 0.25 in Npt Lever Actuated

Product Description

The NORGREN X3047722 is a manually operated, lever-actuated directional control valve designed for use in pneumatic and fluid control systems. Built around a packed spool design, this 2-position valve provides reliable on/off flow control through a 0.25 inch NPT port. With a flow coefficient (Cv) rating of 0.34, it delivers consistent, repeatable performance in applications where manual actuation is preferred over solenoid or pilot-operated control. Weighing 1.25 pounds and finished in black, this valve is a compact, durable component suited for industrial and mechanical service environments. Licensed plumbers, pipefitters, and industrial technicians are the typical installers.

This valve is well suited for pneumatic control panels, compressed air distribution lines, and fluid-handling systems requiring manual shutoff or diversion. Its 2-position lever actuator makes it straightforward to operate and visually confirm flow state. The 0.25 inch NPT outlet size fits standard quarter-inch threaded piping commonly found in light industrial, HVAC, and process control installations. Operating temperature range of 32 degrees F to 158 degrees F makes it appropriate for both indoor and climate-controlled outdoor installations.

Key Features

• Packed spool design provides positive sealing and low internal leakage
• Lever actuator allows manual, tool-free flow control with clear position indication
• 0.25 inch NPT outlet for compatibility with standard threaded pipe and fittings
• Cv rating of 0.34 for predictable flow performance in low-to-moderate flow applications
• 2-position operation for straightforward open/closed control
• Operating range of 32 degrees F to 158 degrees F suits most indoor service environments

Compatibility

Designed as an OEM-style replacement or direct-fit component for pneumatic and fluid control systems using 0.25 inch NPT threaded connections requiring manual lever-actuated directional control.

Installation Notes

Installation should be performed by a qualified pipefitter, plumber, or industrial technician familiar with pneumatic and fluid system assembly. Depressurize and isolate the system completely before removing any existing valve or installing this component. Use appropriate thread sealant or PTFE tape on NPT threads per applicable codes, and avoid overtightening, which can crack spool housings or distort sealing surfaces. Verify flow direction and lever position after installation before returning the system to service.
