Norgren X3047222 Mechanical Valve Packed Spool 1/8 Inch Npt

Product Description

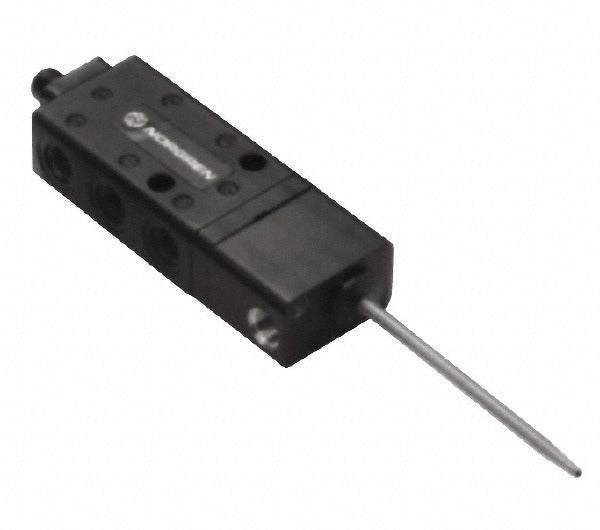

The NORGREN X3047222 is a mechanically operated directional control valve designed for pneumatic systems requiring reliable, repeatable flow switching. It uses a packed spool design with an antenna-style mechanical actuator and a spring return mechanism to complete the cycle. Rated at a Cv of 0.340, this 5-port, 2-position valve controls compressed air routing in automated machinery, pneumatic cylinders, and similar actuator circuits. The 1/8 inch NPT inlet keeps installation compact. Licensed pneumatic technicians and industrial maintenance mechanics are the primary installers in OEM equipment and factory floor applications.

This valve is suited for light industrial and automated process environments where a mechanical trigger — such as a cam, lever contact, or physical stop — needs to shift a pneumatic circuit. The antenna actuator responds to contact from moving machine components, making it appropriate for end-of-travel detection, part presence sensing, and sequencing applications. Working temperature range spans 32 degrees F to 158 degrees F, keeping it viable for both ambient indoor production environments and climate-controlled enclosures. The black housing and compact footprint allow integration into tight panel or manifold arrangements.

Key Features

• Packed spool design provides reliable sealing across repeated mechanical cycles
• Antenna actuator enables contact-triggered shifting from moving machine elements
• Spring return automatically resets valve to home position when actuator is released
• 5-port, 2-position configuration supports standard double-acting cylinder circuits
• 0.340 Cv rating delivers controlled flow for small-bore pneumatic actuators
• 1/8 inch NPT connections for straightforward integration into existing pneumatic plumbing

Compatibility

Designed as an OEM-style mechanically operated directional control valve for light industrial pneumatic systems using 1/8 inch NPT ported components operating within the stated pressure and temperature ratings.

Installation Notes

Installation should be performed by a qualified pneumatic technician or industrial maintenance mechanic familiar with directional control valve circuits. Depressurize and lock out the pneumatic supply before removing or installing any valve in the circuit. Verify that the antenna actuator alignment with the triggering machine element allows full, clean actuation without side-loading the actuator stem. Apply thread sealant compatible with compressed air service to NPT connections and torque to fitting manufacturer specifications.
