Norgren RC-3 Piston Rod Clevis 1-1/16 Inch Bore

Product Description

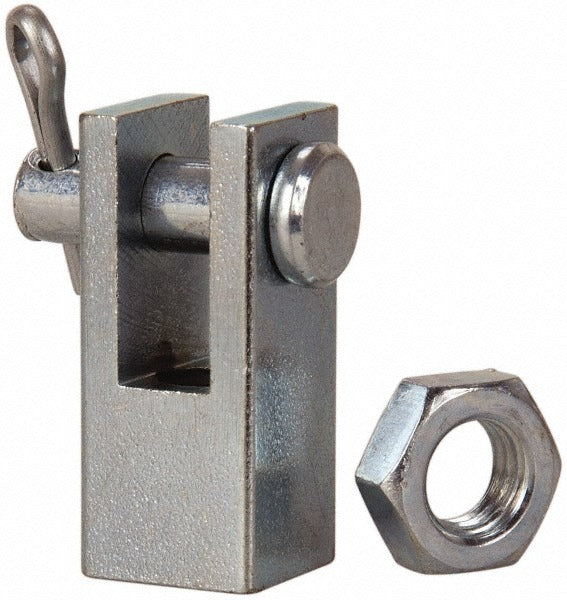

The NORGREN RC-3 is a piston rod clevis accessory designed for use with Norgren nonrepairable air cylinders. A rod clevis attaches to the end of the piston rod to create a pivot-style mechanical connection between the cylinder and the load or linkage it drives. This fitting is sized for 1-1/16 inch bore cylinders and provides a reliable, low-profile end connection suited to linear actuator assemblies. Installation is typically performed by maintenance technicians and pneumatic system integrators working on automated or semi-automated equipment. The RC-3 allows angular movement at the rod end, reducing side-load stress on the cylinder and extending service life.

The RC-3 is used in pneumatic actuator assemblies where the cylinder rod must connect to a clevis pin, bracket, or lever arm. It is matched specifically to Norgren nonrepairable air cylinders with a 1-1/16 inch bore. Common applications include light industrial automation, material handling linkages, and pneumatic control mechanisms where a pivot-mount rod end connection is required. This clevis is a factory-matched accessory, making it a direct fit for compatible Norgren cylinder configurations without requiring modification.

Key Features

• Sized for 1-1/16 inch bore Norgren nonrepairable air cylinders
• Pivot-style connection reduces side-load stress on the piston rod
• Direct OEM-matched accessory for compatible Norgren cylinder models
• Single-piece packaging — sold individually (package quantity of 1)
• Weighs 1 pound — compact and suitable for space-constrained actuator assemblies

Compatibility

Designed for use with Norgren nonrepairable air cylinders with a 1-1/16 inch bore size.

Installation Notes

Installation is performed by qualified pneumatic system technicians or maintenance personnel. Before servicing any pneumatic actuator assembly, isolate and depressurize the air supply fully and verify zero-energy state before disconnecting or attaching rod end hardware. Secure the clevis pin with an appropriate retaining clip or cotter pin as required by the linkage design. Follow applicable machinery safety standards and the equipment manufacturer's service documentation during reassembly.
