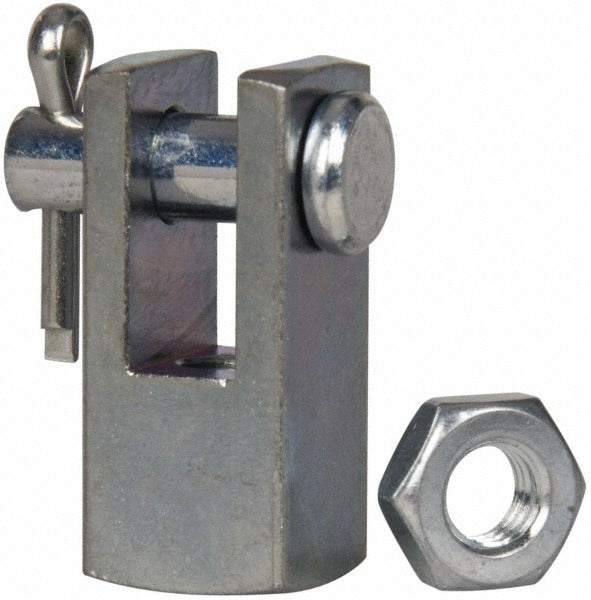

Norgren RC-2 Piston Rod Clevis 3/4 Inch Bore

Product Description

The NORGREN RC-2 is a piston rod clevis accessory designed for use with Norgren nonrepairable air cylinders. A piston rod clevis connects the end of a cylinder's piston rod to a load or linkage, converting linear motion into mechanical work at the attachment point. This clevis is sized for a 3/4 inch bore cylinder and is a standard component in pneumatic actuator assemblies. Pneumatic system technicians, maintenance mechanics, and industrial automation professionals install this type of hardware when configuring or replacing rod-end attachments on air cylinders in manufacturing, processing, and equipment control applications.

This clevis is intended for pneumatic cylinder assemblies where a rod-end pivot attachment is required. It is designed specifically to pair with Norgren nonrepairable air cylinder product lines in the 3/4 inch bore size class. Typical installations include factory automation equipment, conveyor systems, valve actuators, and light industrial machinery where a clevis-pin linkage is the preferred load attachment method. This is a single-piece hardware accessory supplied individually.

Key Features

• Designed for 3/4 inch bore air cylinders
• Compatible with Norgren nonrepairable air cylinder series
• Rod-end clevis configuration enables pivot-pin load attachment
• Lightweight at 1 pound, suitable for compact actuator assemblies
• Sold individually for precise quantity purchasing

Compatibility

Designed for use with Norgren nonrepairable air cylinders with a 3/4 inch bore size.

Installation Notes

Installation is typically performed by qualified pneumatic or mechanical technicians. Before servicing or replacing any cylinder rod-end hardware, depressurize the pneumatic circuit completely and verify that all stored mechanical energy in the actuator is released. Secure the clevis to the piston rod per the cylinder manufacturer's assembly guidance, and use an appropriate clevis pin and retaining hardware rated for the load and cycle requirements of the application.
