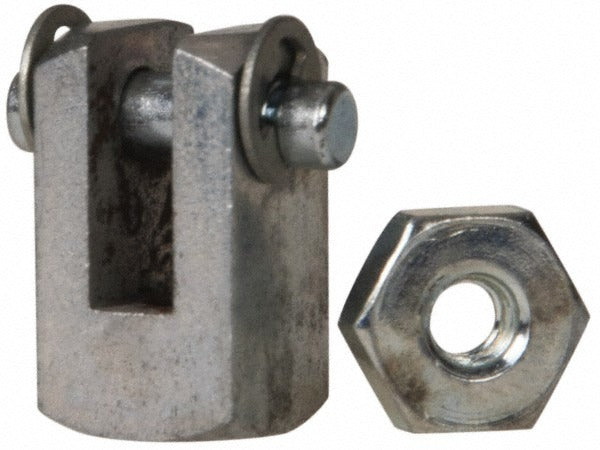

Norgren RC-0 Piston Rod Clevis 5/16 Inch Bore

Product Description

The NORGREN RC-0 is a piston rod clevis designed for use with Norgren nonrepairable air cylinders. A clevis attachment connects the end of a piston rod to a load or linkage, converting linear cylinder motion into mechanical work at a pivot point. This RC-0 clevis fits cylinders with a 5/16 inch bore. It is a direct-fit accessory intended to complete or extend existing pneumatic cylinder assemblies. Pneumatic system technicians and industrial maintenance professionals install this type of hardware when setting up or reconfiguring actuator linkages in light-duty pneumatic applications.

The RC-0 is suited for small-bore pneumatic cylinder installations where a rod-end clevis connection is required. It is designed specifically for Norgren nonrepairable air cylinders in the 5/16 inch bore size class. Typical applications include pneumatic actuator assemblies in industrial automation, material handling, and light mechanical control systems where a pivot-style rod end is needed to accommodate angular load movement.

Key Features

• Piston rod clevis end fitting for 5/16 inch bore air cylinders
• Designed specifically for Norgren nonrepairable air cylinder series
• Enables pivot-style mechanical connection at the rod end
• Compact form factor suited for light-duty pneumatic linkage assemblies
• Sold individually as a single-piece accessory

Compatibility

Designed for use with Norgren nonrepairable air cylinders with a 5/16 inch bore size.

Installation Notes

Installation of piston rod clevis hardware should be performed by a qualified pneumatic systems technician. Depressurize and lock out the pneumatic circuit before removing or attaching any rod-end accessories. Ensure the clevis pin and mounting hardware are properly secured before returning the system to service. Do not operate the cylinder under load until the clevis connection has been verified for alignment and full thread engagement.
