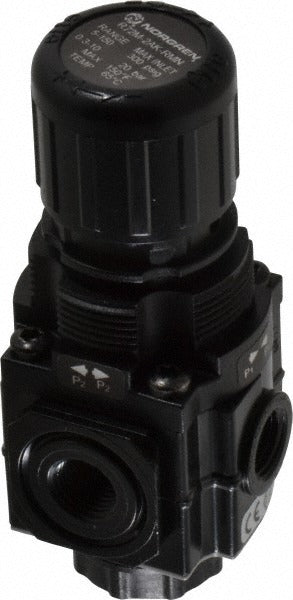

Norgren R72M-2AK-RMN Manifold Air Regulator 1/4 in Nptf

Product Description

The NORGREN R72M-2AK-RMN is a manifold-mount compressed air regulator designed for inline pressure control in pneumatic systems. Part of the R72M series, it accepts a 1/4 inch NPTF port connection and handles a maximum supply pressure of 290 psi with a maximum working pressure of 300 psi. The regulator delivers up to 83 CFM of airflow and includes a built-in relief function for overpressure protection. Its zinc body and modular connection design make it well-suited for multi-station manifold assemblies. Industrial maintenance technicians and pneumatic system specialists are the primary installers.

The R72M-2AK-RMN is intended for compressed air service in industrial and commercial pneumatic applications. The modular connection allows it to integrate into multi-regulator manifold banks, making it a practical choice for production equipment, automation systems, and compressed air distribution panels. The operating pressure range runs from 5 to 150 psi on the outlet side, and the unit is rated for use at temperatures as low as -30 degrees F. No pressure gauge is included, though a 1/8 inch gauge port is provided for field-installed gauges.

Key Features

• Manifold-mount design with modular connection for multi-station assemblies
• 1/4 inch NPTF end connections for secure, thread-sealed porting
• Maximum supply pressure of 290 psi with 300 psi maximum working pressure
• 83 CFM maximum airflow capacity
• Built-in relief function for overpressure protection
• Zinc body construction rated to -30 degrees F minimum operating temperature
• 1/8 inch gauge port for optional field-installed pressure gauge

Compatibility

Designed for use with compressed air service as part of the NORGREN R72M series modular manifold regulator system.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic system service. Depressurize and lock out the compressed air supply before removing or installing any regulator. Verify all thread connections are sealed appropriately for NPTF ports and inspect for leaks after pressurizing. Confirm outlet pressure setting falls within the 5 to 150 psi adjustment range before returning the system to service.
