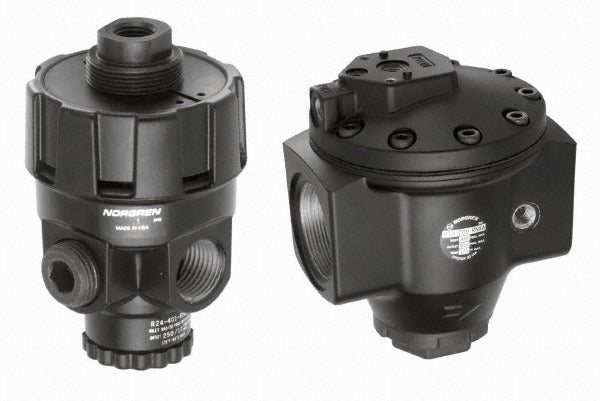

Norgren R24-601-RNXA Air Regulator 3/4 Npt 300 Psi

Product Description

The NORGREN R24-601-RNXA is a hi-flow pilot operated compressed air regulator designed for industrial pneumatic systems requiring precise downstream pressure control at high flow rates. Built with a zinc body and rated for a maximum supply pressure of 300 psi, this regulator handles demanding applications where standard direct-acting regulators fall short. The 3/4 inch NPT port size accommodates high-volume air lines, and the unit includes a built-in relief function to vent excess downstream pressure. Operating temperature range spans 0 to 175 degrees F. A licensed technician or qualified pneumatic systems mechanic is the typical installer.

This regulator is suited for commercial and industrial compressed air distribution systems, production machinery, pneumatic tooling circuits, and process control applications. The pilot-operated design makes it a strong fit for systems where downstream demand fluctuates and stable regulated pressure is critical. The 1/2 inch gauge port thread provides an option to add a pressure gauge in the field. No modular manifold connection is included, making it a standalone inline installation.

Key Features

• Hi-flow pilot operated design maintains stable outlet pressure under variable demand
• 300 psi maximum supply pressure rating handles high-pressure compressed air headers
• 3/4 inch NPT port size supports high-volume flow applications
• Built-in relief function vents excess downstream pressure automatically
• 1/2 inch gauge port allows field installation of a pressure gauge
• Zinc body construction suited for industrial service environments

Compatibility

Designed as an OEM-style inline replacement for hi-flow pilot operated compressed air regulators with 3/4 inch NPT connections in industrial and commercial pneumatic systems.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician familiar with compressed air distribution codes and lockout/tagout procedures. Depressurize and isolate the air supply completely before removing the existing regulator or making any connections. Apply appropriate thread sealant to NPT fittings and verify all connections are leak-free before returning the system to service. Do not exceed the 300 psi maximum supply pressure rating.
