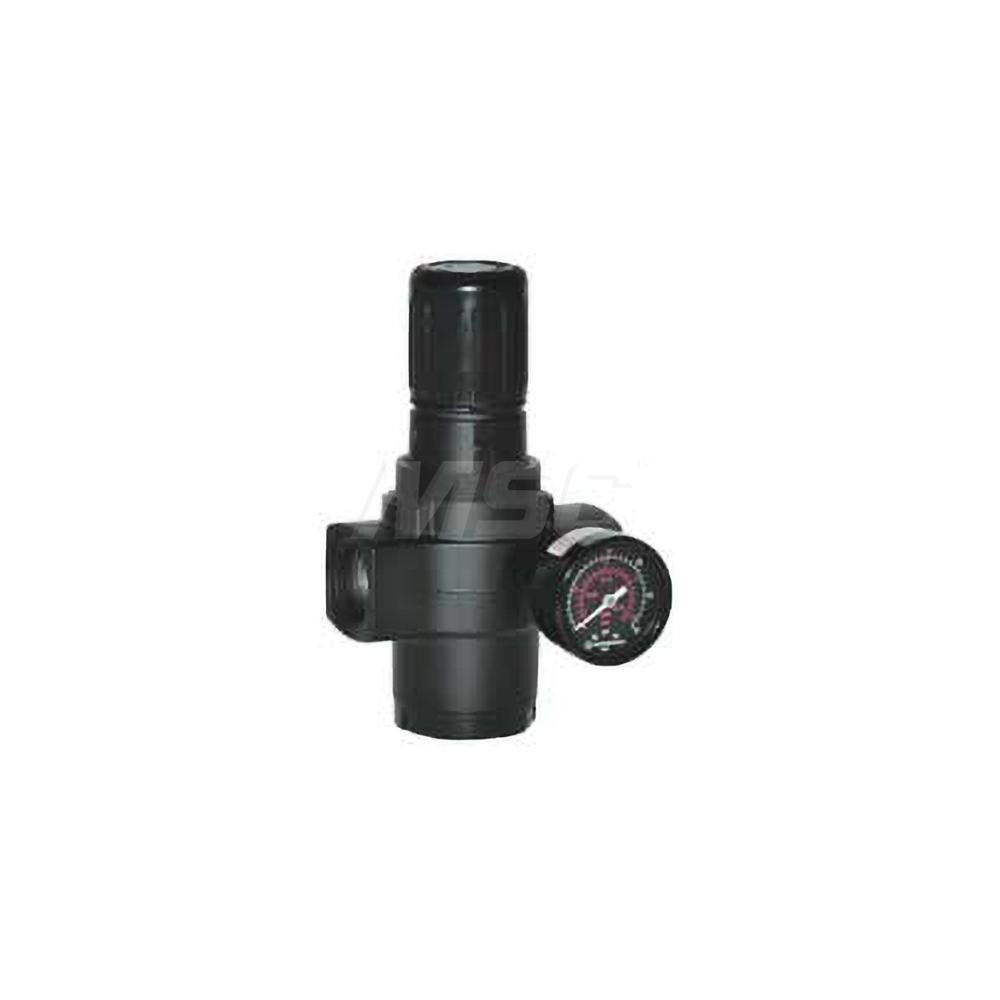

Norgren R17-800-RGSA Air Regulator 1 Inch Npt with Gauge

Product Description

The NORGREN R17-800-RGSA is a general-duty compressed air regulator designed to control and maintain downstream air pressure in pneumatic systems. Fitted with a 1-inch NPT port, this regulator accepts standard threaded pipe connections common in industrial and commercial compressed air lines. A pressure gauge is included, allowing technicians to read regulated output pressure directly at the unit without additional instrumentation. This regulator is suited for installation by pipefitters, millwrights, and HVAC-R technicians who maintain compressed air distribution systems, pneumatic controls, and process equipment.

The R17-800-RGSA is appropriate for general compressed air service applications in light industrial, commercial mechanical, and process environments. The 1-inch NPT port size makes it a practical fit for medium-to-large compressed air headers and branch lines where consistent regulated pressure is required. It is intended for use where a standard general-purpose regulator with integrated pressure indication is needed at the point of use or inline along a compressed air distribution circuit.

Key Features

• 1-inch NPT port for direct threaded connection to standard compressed air piping
• Integrated pressure gauge included for on-site pressure monitoring without additional fittings
• General-duty regulator type suited for a broad range of compressed air service conditions
• Weighs 2.31 pounds, supporting straightforward in-line installation

Compatibility

Designed as an OEM-style replacement or direct-install general compressed air regulator for pneumatic systems with 1-inch NPT threaded connections.

Installation Notes

Installation should be performed by a qualified pipefitter, millwright, or mechanical technician. Before servicing or replacing the regulator, depressurize and lock out the upstream compressed air supply per applicable OSHA lockout-tagout procedures. Use thread sealant or PTFE tape on NPT threads and verify all connections are leak-free before returning the system to service. Mount the regulator in an upright or manufacturer-recommended orientation to ensure proper gauge readability and internal mechanism performance.
