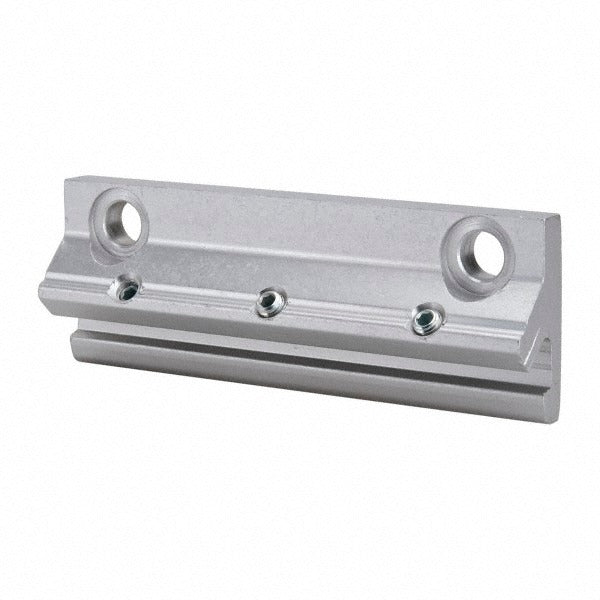

Norgren QM/146025/32 Air Cylinder Center Support Bracket

Product Description

The NORGREN QM/146025/32 is a center support bracket designed for use with pneumatic air cylinders featuring a 1 inch bore. This accessory provides mid-stroke lateral support to the cylinder body, reducing deflection and extending service life in applications where rod or body loading could cause misalignment. It is an OEM-style mounting accessory intended for installation by pneumatic system technicians, millwrights, and maintenance professionals working on linear actuator assemblies. The bracket is rated for a minimum operating temperature of -22 degrees F, making it suitable for cold-environment industrial applications.

This center support bracket is used in industrial pneumatic systems where long-stroke or heavy-duty air cylinders require additional body support between end mounts. Typical installation scenarios include horizontal cylinder orientations on machinery, conveyors, and automation equipment where unsupported cylinder weight or side loads could cause wear on rod seals and end cap bearings. The bracket attaches to the cylinder body and anchors to a fixed machine frame or subplate.

Key Features

• Designed for 1 inch bore pneumatic air cylinders
• Center support configuration reduces cylinder body deflection under load
• Rated for minimum operating temperature of -22 degrees F
• Lightweight at 0.09 pounds for easy handling during installation
• OEM accessory from NORGREN for precise fitment

Compatibility

Designed for use with NORGREN pneumatic air cylinders with a 1 inch bore diameter. Refer to NORGREN cylinder documentation to confirm bracket series compatibility before installation.

Installation Notes

Installation is typically performed by qualified pneumatic system technicians or maintenance personnel. De-energize and exhaust all air pressure from the cylinder circuit before mounting or adjusting any support hardware. Ensure the bracket is aligned parallel to the cylinder centerline to avoid inducing side loads. Secure all fasteners to the machine frame per the equipment manufacturer torque specifications.
