Norgren QC/90020/22 Flange Mount 3/4 in Bore 20mm Cylinders

Product Description

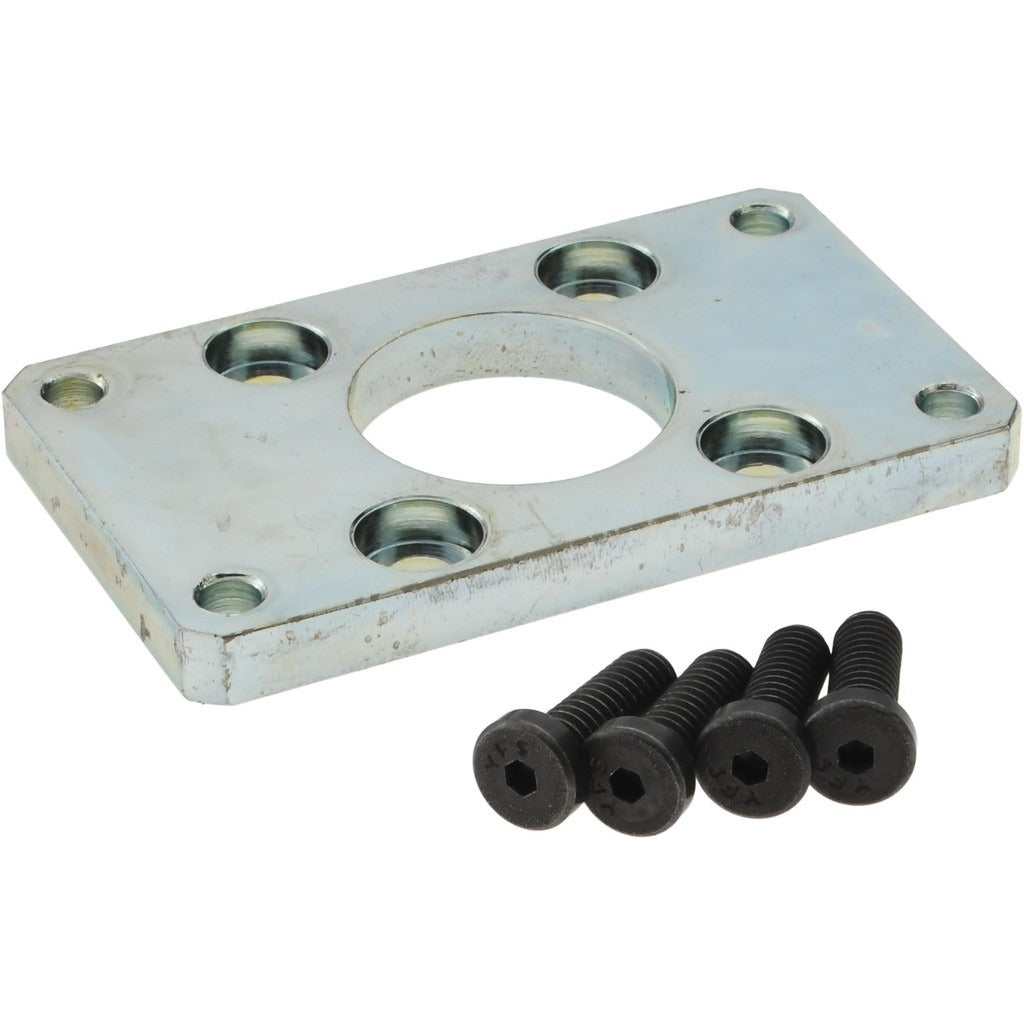

The NORGREN QC/90020/22 is a flange mount accessory designed for use with 20 mm compact air cylinders. It provides a rigid, bolt-on mounting interface that secures the cylinder to a machine frame or panel, keeping the assembly stable under cyclic pneumatic loads. The bore size is 3/4 inch, matching the dimensional envelope of compatible 20 mm compact cylinder bodies. Rated for a minimum operating temperature of 23 degrees F, this mount is suitable for both indoor industrial environments and light-duty cold-storage or refrigerated-space applications. Installation is handled by millwrights, pneumatic technicians, or maintenance mechanics working on automated assembly, packaging, or material-handling equipment.

This flange mount is intended for use in industrial pneumatic systems where compact cylinder actuators require a fixed, surface-mounted configuration. Typical install scenarios include linear actuator assemblies on production line equipment, jig-and-fixture setups, and panel-mounted pneumatic control stations. The mount is paired with 20 mm compact cylinders during initial equipment build or as a replacement accessory during service. It fits both horizontal and vertical mounting orientations depending on the application layout.

Key Features

• Flange mount style provides a rigid, bolted connection to machine frames and panels
• 3/4 inch bore size matches 20 mm compact cylinder body dimensions
• Minimum operating temperature of 23 degrees F supports use in refrigerated or cold industrial environments
• Compact form factor suits space-constrained pneumatic actuator assemblies
• Single-unit packaging supports one-for-one replacement or new-build installation

Compatibility

Designed for use with 20 mm compact air cylinders requiring a flange mount interface with a 3/4 inch bore size.

Installation Notes

Installation is typically performed by a qualified pneumatic technician or industrial maintenance mechanic. Depressurize and lock out the pneumatic supply line before removing or installing any cylinder mount hardware. Verify that the mounting surface is flat and capable of handling the cylinder thrust load before fastening. Consult the cylinder manufacturer documentation for fastener specifications and torque requirements not covered by this accessory listing.
