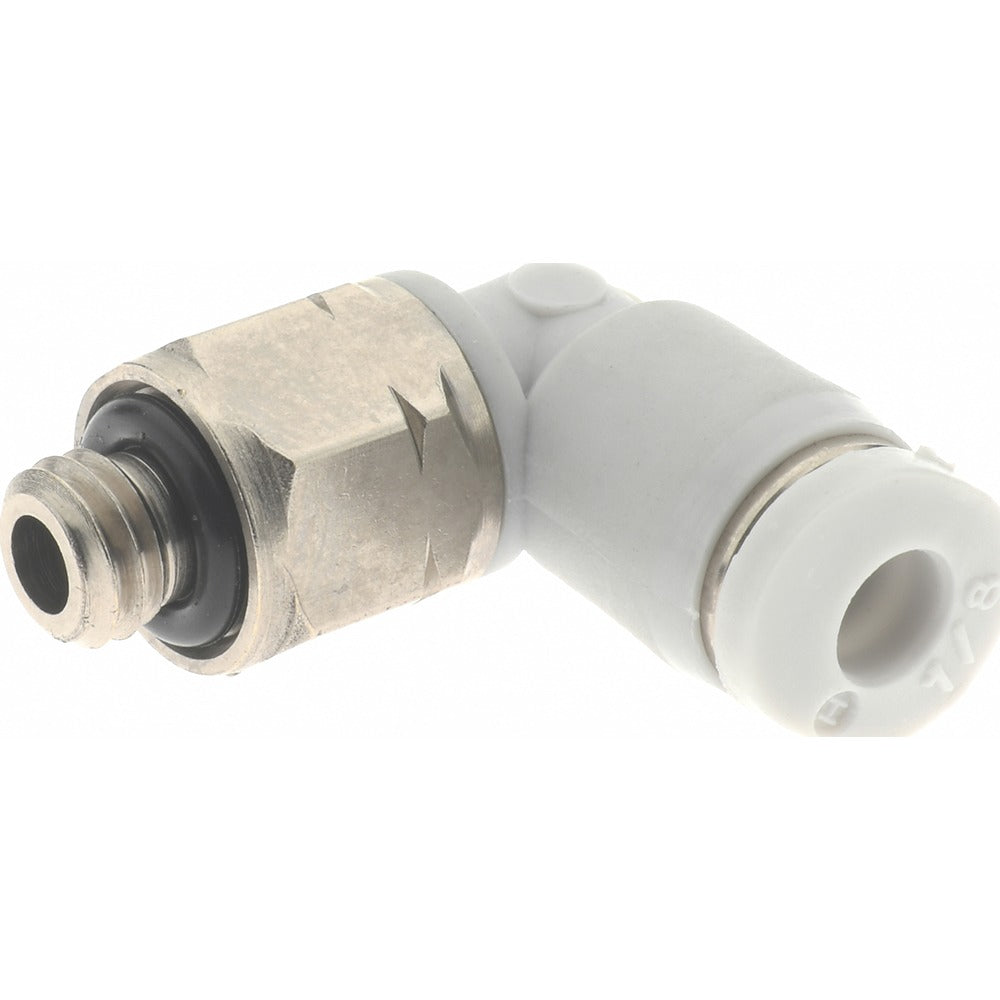

Norgren M24470110 90 Swivel Elbow Adapter 10-32 Unf

Product Description

The NORGREN M24470110 is a push-to-connect 90-degree swivel elbow adapter designed to join a 1/8-inch OD tube to a 10-32 UNF male thread in a right-angle configuration. Constructed from brass, this fitting handles working pressures up to 150 psi and operates across a temperature range of 0 to 175 degrees F. The swivel design allows rotational positioning after assembly, making it well suited for tight routing situations where fixed fittings create alignment problems. An integrated nitrile O-ring provides a reliable seal at the tube connection point. Pneumatic technicians and fluid system assemblers working on instrumentation, light pneumatic, or OEM equipment lines are the primary installers of this component.

This fitting is used in pneumatic tubing assemblies where a compact, directional change is required at a male UNF threaded port. Typical applications include small-bore pneumatic circuits found in industrial automation, instrumentation panels, and OEM fluid control assemblies. The 10-32 UNF thread size is common on manifold bodies, solenoid valve ports, and sensor fittings. The push-to-connect tube end accepts 1/8-inch OD tubing for fast, tool-free tube insertion while allowing quick release when service is needed.

Key Features

• 90-degree swivel elbow allows post-installation rotation for precise tube routing
• Push-to-connect end accepts 1/8-inch OD tubing without additional tools
• 10-32 UNF male thread suits common manifold and valve port standards
• Brass construction rated to 150 psi working pressure
• Nitrile O-ring provides a dependable seal at the tube interface
• Rated for use from 0 to 175 degrees F, covering typical pneumatic service environments

Compatibility

Designed for use with 1/8-inch OD tubing in pneumatic systems equipped with 10-32 UNF threaded ports. No specific compatible model numbers were provided in the product data.

Installation Notes

Shut down and depressurize the pneumatic circuit fully before removing or installing any fittings. Thread the 10-32 UNF male end into the receiving port by hand first, then tighten with an appropriate wrench to avoid cross-threading the fine thread. Insert tubing straight into the push-to-connect end until it seats fully; to release, depress the collet ring and withdraw the tube. Verify the swivel position and tubing routing before returning the system to service pressure.
