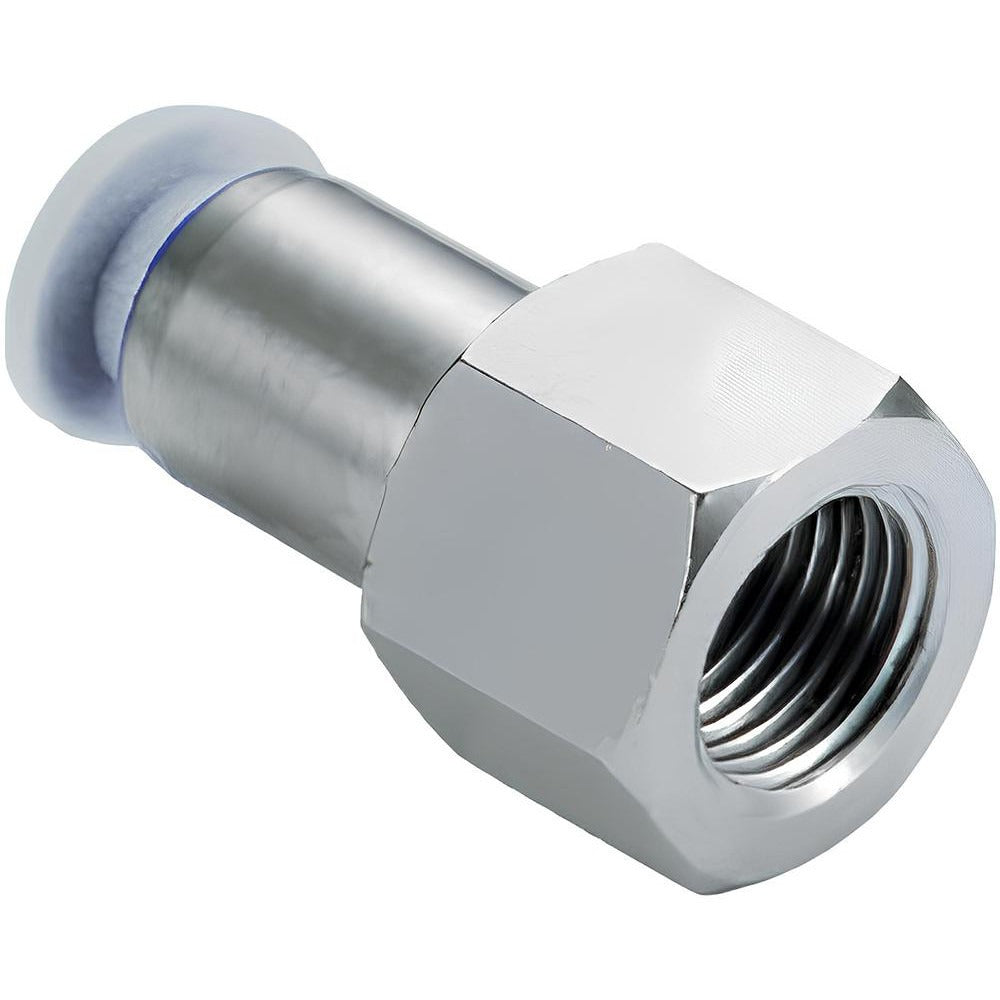

Norgren M24260118 Straight Adapter Fitting 1/8 in Brass

Product Description

The NORGREN M24260118 is a push-to-connect straight adapter tube fitting designed for quick, tool-free connections in pneumatic and general-purpose fluid systems. It transitions between a 1/8 inch OD tube and a 1/8 inch female NPT port using an NPTF thread interface. Constructed from brass, this compact inline adapter is rated to 150 psi maximum working pressure and handles temperatures from 0 degrees F to 175 degrees F. The push-to-connect mechanism uses a nitrile O-ring seal to grip and lock the tube on insertion, making it a reliable choice for fast assembly or field repair work on compressed air lines and instrumentation circuits.

This fitting is suited for general-purpose pneumatic and low-pressure fluid systems in residential, commercial, and light industrial settings. Typical applications include instrument air lines, pneumatic controls, and compressed air distribution panels where a straight inline transition from tubing to a female NPT port is needed. Licensed HVAC technicians, plumbers, and industrial maintenance technicians commonly specify this type of fitting when connecting control tubing to manifolds, valves, or sensor ports with female NPT threads.

Key Features

• Push-to-connect design allows tool-free tube insertion and secure locking without additional fittings or ferrules
• Rated to 150 psi maximum working pressure for reliable performance in compressed air and fluid service
• Brass construction provides corrosion resistance in both air and compatible fluid applications
• NPTF thread type ensures a tight, leak-resistant connection at the female NPT port
• Nitrile O-ring sealing element suited for general-purpose pneumatic media
• Wide operating temperature range of 0 degrees F to 175 degrees F covers most HVAC and industrial environments

Compatibility

Designed as a general-purpose push-to-connect adapter for systems using 1/8 inch OD tubing and 1/8 inch female NPT ports in compressed air and pneumatic control applications.

Installation Notes

This fitting is typically installed by licensed HVAC technicians, plumbers, or instrumentation mechanics. Depressurize and isolate the line completely before removing any existing fitting or inserting this adapter. Ensure the NPTF threads are clean and use appropriate thread sealant or PTFE tape as required by applicable codes. When inserting tubing, cut the tube end square and deburr before pushing fully into the fitting to ensure a positive seal and prevent O-ring damage.
