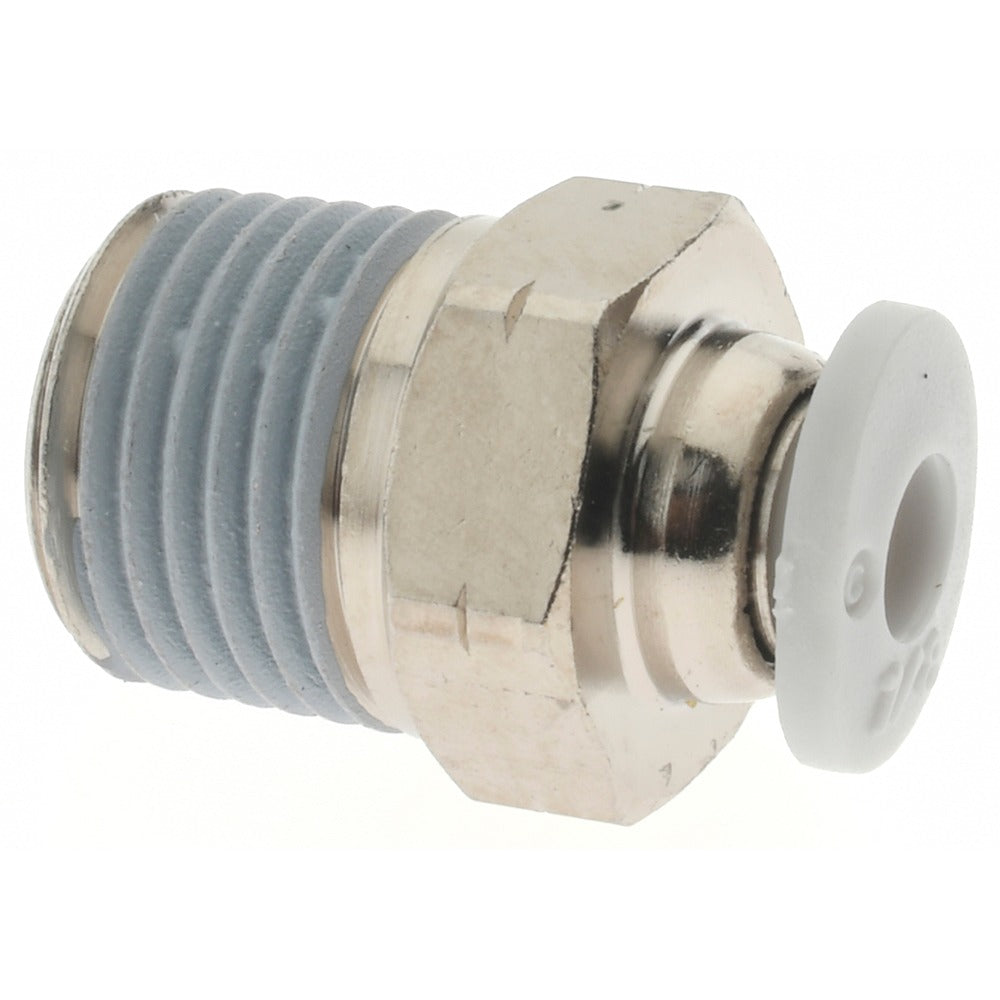

Norgren M24250118 Push-to-connect Straight Adapter 1/8 in

Product Description

The NORGREN M24250118 is a straight push-to-connect adapter fitting that joins a 1/8 inch OD tube to a 1/8 inch male NPTF threaded port. Constructed from brass, this adapter is rated for a maximum working pressure of 150 psi and a maximum temperature of 175 degrees F, with a minimum working temperature of 0 degrees F. The nitrile O-ring provides a reliable seal in pneumatic and fluid-transfer applications. At 0.69 inches in overall length and weighing under a tenth of a pound, the fitting is compact and easy to install in tight spaces. Plumbers, HVAC technicians, and industrial service pros use this type of fitting for instrument air, pneumatic control lines, and light fluid-handling circuits.

This fitting is suited for residential and light commercial pneumatic or plumbing systems where a tube-to-male-NPT inline connection is required. The push-to-connect design on both tube ends allows for fast, tool-free tube insertion, making it practical in control-panel builds, pneumatic actuator lines, and compressed-air distribution points where NPTF port connections are present. The straight adapter configuration maintains a low-profile inline run without introducing bends or offsets.

Key Features

• Push-to-connect tube ends with 1/8 inch OD tube compatibility for tool-free installation
• 1/8 inch NPTF male thread for leak-resistant tapered thread engagement
• Brass body construction for corrosion resistance and durability in pneumatic and fluid service
• 150 psi maximum working pressure rating
• Nitrile O-ring seal for reliable tube retention and leak-free performance
• Compact 0.69 inch overall length for use in confined panel or manifold spaces

Compatibility

Designed as an OEM-style push-to-connect adapter for pneumatic control lines and plumbing systems requiring a 1/8 inch OD tube to 1/8 inch male NPTF port connection.

Installation Notes

Installation is performed by licensed plumbers or qualified HVAC and pneumatic system technicians. Shut off and depressurize the line before servicing any fitting. Insert tube fully until it seats against the internal stop; confirm retention by applying a light pull-back force on the tube. NPTF threads should be engaged by hand first to avoid cross-threading, then tightened with an appropriate wrench to achieve a pressure-tight seal without over-stressing the brass body.
