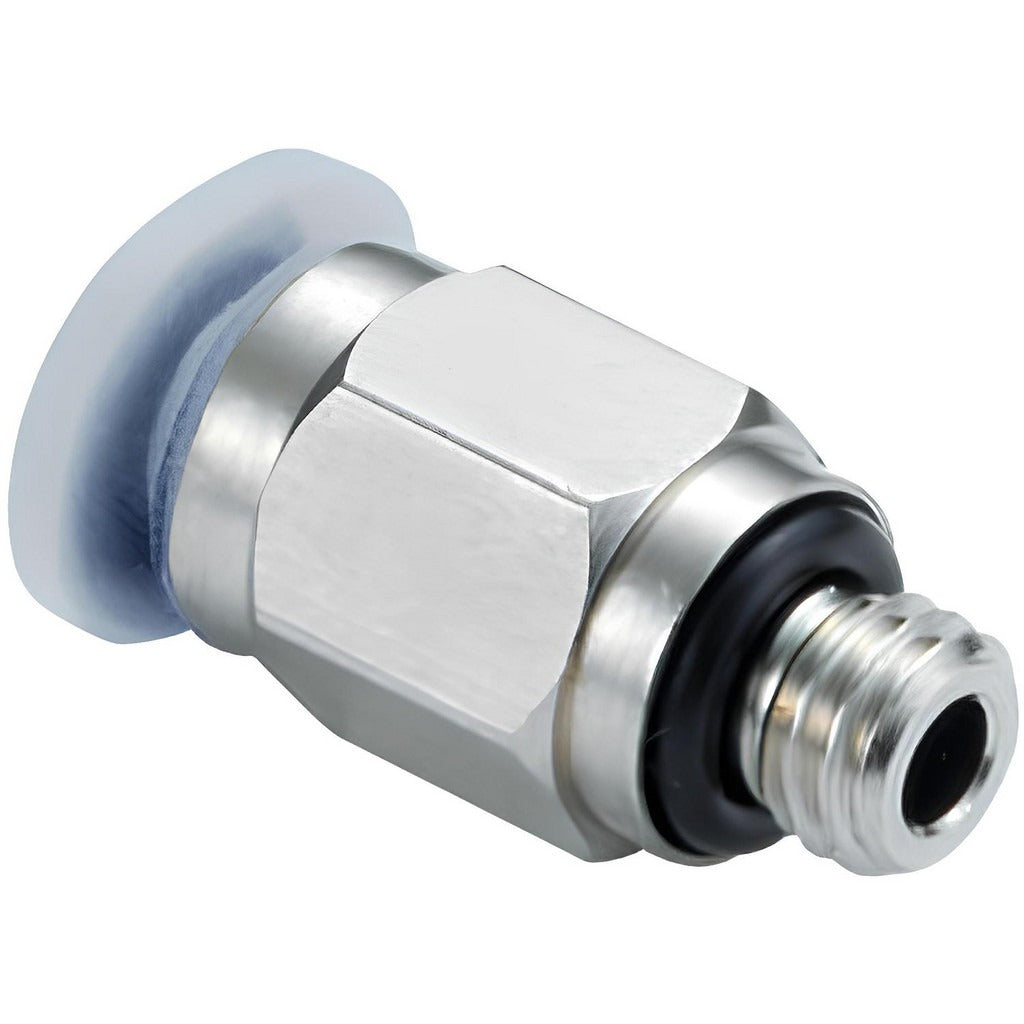

Norgren M24250116 Straight Adapter 1/8 in Od Brass 150 Psi

Product Description

The NORGREN M24250116 is a push-to-connect straight adapter tube fitting designed to connect 1/8-inch OD tubing to a male NPT port. Constructed from brass, this compact inline adapter measures 0.65 inches in length and supports a maximum working pressure of 150 psi. It uses NPTF thread for a leak-resistant seal and incorporates a nitrile O-ring for reliable tube retention. The push-to-connect design allows fast, tool-free tube insertion while maintaining a secure connection under operating conditions. Plumbers, HVAC technicians, and pneumatic system installers use this fitting in general-purpose fluid and air distribution lines where a tubing run must transition to a male pipe thread port.

This fitting is suited for light-to-medium duty pneumatic and fluid system applications in both residential and commercial settings. Typical installations include instrument air lines, compressed air distribution, and general-purpose tubing assemblies operating within the rated temperature window of 0 degrees F to 175 degrees F. The straight adapter configuration makes it appropriate for in-line tube-to-port connections where a compact, low-profile fitting is required.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion
• Brass body provides corrosion resistance in air and water service
• Rated to 150 psi maximum working pressure
• NPTF thread type for a pressure-tight male pipe thread engagement
• Nitrile O-ring included for secure tube retention
• Compact overall length of 0.65 inches suits tight installation spaces

Compatibility

Designed as an OEM-style replacement or new-installation fitting for general-purpose pneumatic and fluid tubing systems using 1/8-inch OD tubing with a male NPT port connection.

Installation Notes

Installation is typically performed by a plumber, HVAC technician, or instrumentation technician. De-pressurize the system completely before removing or installing any fitting. Hand-tighten the NPTF male thread into the receiving port, then apply appropriate thread sealant or tape per the system requirements and applicable plumbing codes. Confirm the tube is fully seated in the push-to-connect collet before restoring system pressure.
