Norgren FB-5 Air Cylinder Foot Bracket 1-1/4 1-1/2 Inch

Product Description

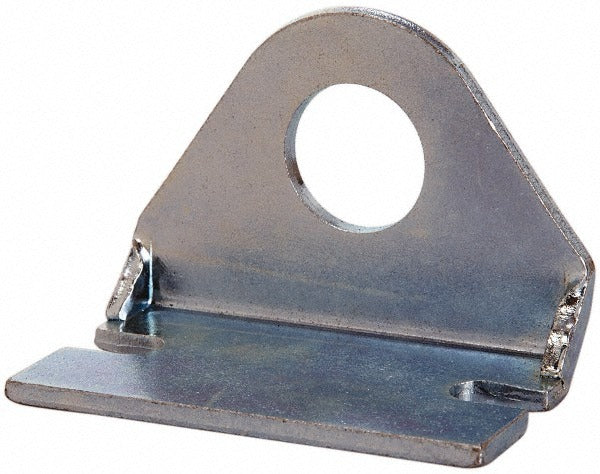

The NORGREN FB-5 is a foot bracket mounting accessory designed for use with Norgren nonrepairable air cylinders. It provides a stable base-mount attachment point, allowing the cylinder to be secured to a fixed surface rather than relying on clevis, trunnion, or flange mounting styles. The bracket weighs 1 pound and is sized to fit 1-1/4 inch and 1-1/2 inch bore cylinders in that Norgren nonrepairable cylinder series. Pneumatic technicians and industrial maintenance professionals install this type of hardware when a stationary, foot-mounted cylinder orientation is required for the application.

This foot bracket is suited for light industrial and automation applications where a Norgren nonrepairable air cylinder must be rigidly mounted to a base plate, machine frame, or structural surface. The foot-mount style keeps the cylinder body fixed while the rod extends and retracts along a single axis. It is appropriate for both OEM machine builds and field replacement installations where the original foot bracket has worn or been damaged.

Key Features

• Foot bracket style provides rigid base mounting for stationary cylinder installations
• Fits 1-1/4 inch and 1-1/2 inch bore Norgren nonrepairable air cylinders
• Lightweight at 1 pound, minimizing added load on the machine frame
• Sold individually — one bracket per package
• Direct OEM accessory from Norgren for correct fitment without modification

Compatibility

Designed for use with Norgren nonrepairable air cylinders with 1-1/4 inch and 1-1/2 inch bore sizes, as specified by the manufacturer.

Installation Notes

Installation is typically performed by a pneumatic technician or industrial maintenance professional. Before mounting or removing any cylinder hardware, depressurize the pneumatic circuit completely and verify the air supply is locked out at the source. Secure the foot bracket to a flat, rigid mounting surface using fasteners appropriate for the load and application. Follow applicable OSHA and machine safety standards for pneumatic system maintenance and component replacement.
