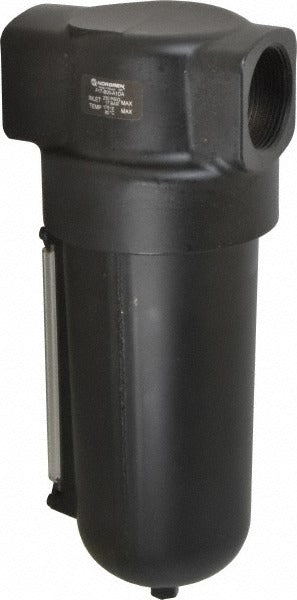

Norgren F17-B00-A1DA Heavy Duty Air Filter 425 Scfm

Product Description

The NORGREN F17-B00-A1DA is a heavy-duty compressed air filter designed for high-flow industrial and commercial pneumatic systems. It removes contaminants from compressed air lines using a 5-micron sintered bronze filter element, protecting downstream equipment from particulates and moisture. The unit features a metal bowl with automatic drain and a sight glass for visual monitoring of bowl level. Rated at 425 SCFM with a maximum operating pressure of 250 psi and a maximum temperature of 150 degrees F, this filter suits demanding applications where continuous operation and reliable filtration are required. Installation is performed by licensed pipefitters, industrial maintenance technicians, or qualified pneumatic system specialists.

The F17-B00-A1DA is suited for industrial facilities, manufacturing lines, and heavy commercial pneumatic installations where large-volume compressed air supply requires consistent particulate control. The 1-1/2 NPT port size accommodates high-capacity air lines, and the automatic drain reduces maintenance intervals in continuous-duty environments. The 32-ounce bowl capacity and metal bowl construction make this unit appropriate for applications with higher condensate loads or where a polycarbonate bowl would present a safety or chemical compatibility concern.

Key Features

• 5-micron sintered bronze filter element captures fine particulates from compressed air
• 425 SCFM flow capacity suits high-demand industrial pneumatic systems
• Automatic drain reduces manual maintenance requirements
• Metal bowl rated for demanding environments where polycarbonate is not appropriate
• Sight glass included for visual condensate level monitoring
• 1-1/2 NPT end connections for direct integration into standard compressed air piping
• 32-ounce bowl capacity handles higher condensate volumes

Compatibility

Designed as an OEM-style heavy-duty compressed air line filter for industrial and commercial pneumatic systems with 1-1/2 NPT pipe connections requiring 5-micron filtration at flows up to 425 SCFM.

Installation Notes

Installation should be performed by a qualified pipefitter or pneumatic systems technician. Depressurize and lock out the compressed air supply completely before removing any existing filter or installing this unit. Ensure flow direction matches the arrow or marking on the filter housing. Follow applicable OSHA and facility safety requirements for compressed air systems during service.
