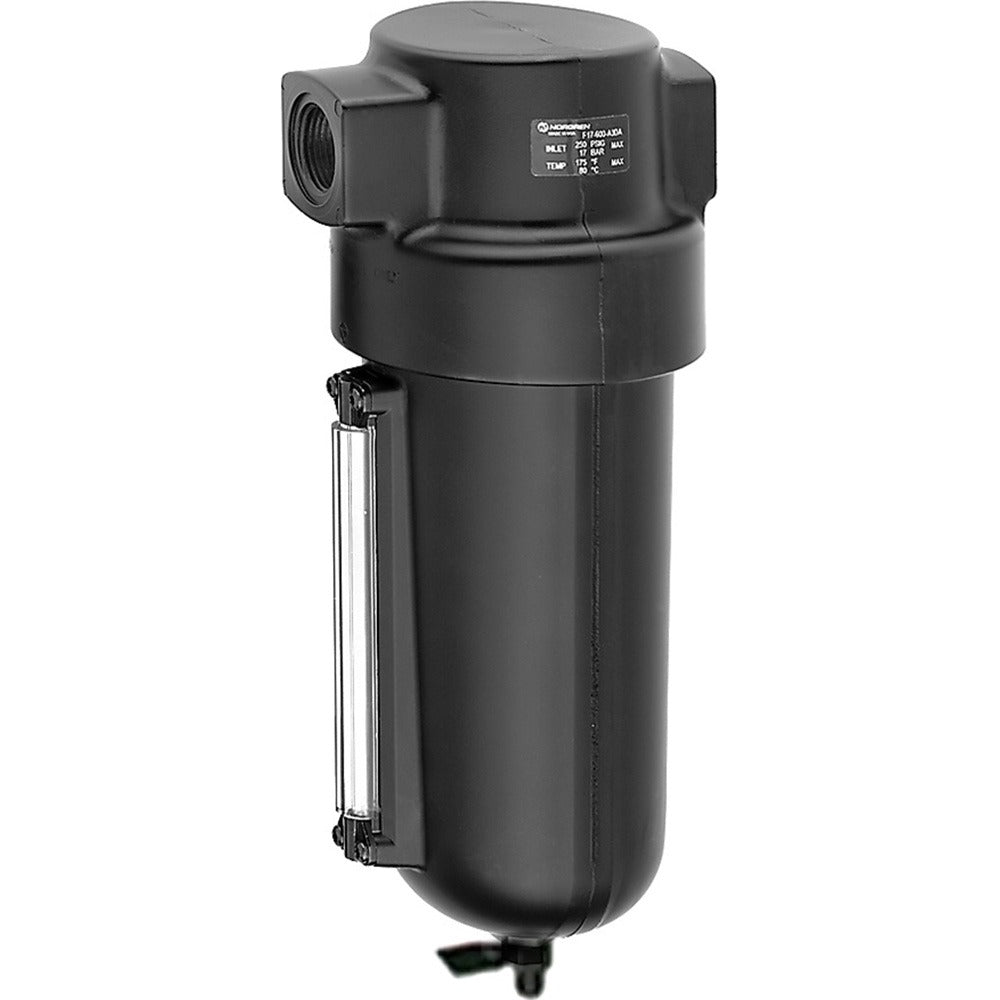

Norgren F17-600-M1DA Frl Unit 3/4 Npt 250 Psi

Product Description

The NORGREN F17-600-M1DA is a single-piece FRL combination unit that integrates air filtration into one compact inline assembly for compressed air systems. Rated to a maximum supply pressure of 250 psi, it accepts a 3/4 NPT port connection and features a metal bowl with a manual drain for straightforward maintenance. The 5-micron filter element removes particulate contamination before downstream tools and equipment see the air supply. At 10 inches tall and 3 pounds, it installs cleanly in industrial and commercial pneumatic lines where consistent air quality is required. Pneumatic technicians and millwrights are the primary installers for this class of component.

This FRL unit suits industrial compressed air systems in manufacturing, process, and mechanical service environments where a 3/4 NPT inline connection is standard. The manual drain requires a scheduled maintenance routine to purge collected condensate and debris from the metal bowl. The 5-micron filtration rating makes it appropriate upstream of pneumatic actuators, cylinders, valves, and air tools that are sensitive to moisture and particulate. It is a standard-body, single-piece filter configuration without modular connection capability, pressure gauge, or mounting brackets included.

Key Features

• 250 psi maximum supply pressure rating for demanding compressed air applications
• 3/4 NPT port size for direct inline installation in standard industrial piping
• 5-micron filter element removes fine particulate from the air supply
• Metal bowl construction provides durability in industrial service environments
• Manual drain for controlled, scheduled condensate removal
• Compact single-piece design — no modular connection required

Compatibility

Designed as an OEM-style inline FRL filter unit for compressed air systems requiring a 3/4 NPT connection and up to 250 psi supply pressure in industrial and commercial pneumatic applications.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician. Depressurize and lock out the compressed air supply completely before removing or installing any inline air treatment component. Apply thread sealant appropriate for compressed air service to the NPT threads and torque to the fitting manufacturer's specification for 3/4 NPT connections. Verify that the manual drain is closed before restoring system pressure, and establish a routine drain interval based on system duty cycle and ambient humidity.
