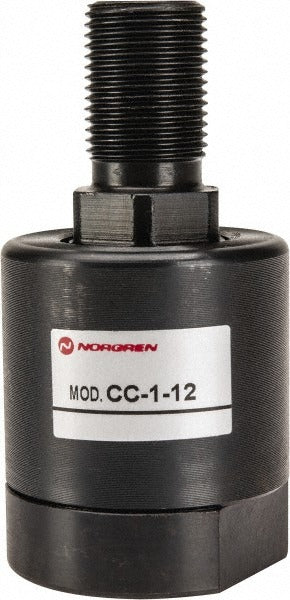

Norgren CC-1-12 Air Cylinder Rod Coupler Nfpa

Product Description

The NORGREN CC-1-12 is an air cylinder rod coupler designed for use with NFPA-standard pneumatic cylinders. Rod couplers connect the cylinder rod to an external load, transmitting linear force without binding or misalignment. This component is rated for operation down to -20 degrees F, making it suitable for cold-environment industrial and automation applications. Installation is handled by mechanical and automation technicians working on pneumatic actuator assemblies. The coupler weighs 1 pound and is sold as a single unit.

This rod coupler is intended for use with 3-1/4 inch and 4 inch bore NFPA-standard pneumatic cylinders. NFPA cylinder accessories are commonly found in industrial automation, manufacturing, and process control systems where standardized pneumatic actuators drive linear motion. The CC-1-12 fits into existing actuator assemblies as a replacement or new-installation component where a standardized rod coupling interface is required.

Key Features

• Compatible with 3-1/4 inch and 4 inch bore NFPA pneumatic cylinders
• Rated for minimum operating temperature of -20 degrees F
• Facilitates secure rod-to-load connection in linear actuator assemblies
• Weighs 1 pound for straightforward handling during installation
• Sold as a single unit with a minimum order quantity of 1

Compatibility

Designed for use with 3-1/4 inch and 4 inch bore NFPA-standard pneumatic cylinders as stated by the manufacturer.

Installation Notes

Installation of pneumatic cylinder rod couplers is typically performed by qualified mechanical or automation technicians. Depressurize and lock out the pneumatic system completely before removing or installing any cylinder accessories. Verify thread engagement and coupler alignment before returning the system to service to prevent rod binding or premature wear.
