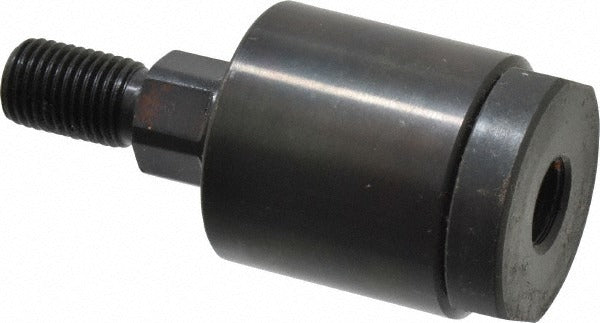

Norgren CC-1-07 Air Cylinder Rod Coupler Nfpa

Product Description

The NORGREN CC-1-07 is an air cylinder rod coupler designed for use with NFPA-standard pneumatic cylinders ranging from 1-1/2 to 2-1/2 inches bore. Rod couplers connect the cylinder rod to an external load or actuator linkage, allowing force to be transmitted through the pneumatic stroke. This component is a standard accessory in pneumatic motion control applications and is installed by industrial maintenance technicians, automation specialists, and mechanical contractors working with NFPA-dimensioned cylinder assemblies. The CC-1-07 carries a minimum operating temperature rating of -20 degrees F, making it suitable for use in cold environments and refrigerated spaces.

This rod coupler is intended for pneumatic cylinder assemblies that conform to NFPA dimensional standards. Typical applications include linear actuator systems in industrial automation, manufacturing equipment, and process control machinery where standardized cylinder mounting and rod connection are required. It is suited for both new installations and replacement service on existing NFPA cylinder assemblies where the bore falls within the 1-1/2 to 2-1/2 inch range.

Key Features

• Compatible with NFPA cylinders in the 1-1/2 to 2-1/2 inch bore range
• Rated for operation down to -20 degrees F minimum temperature
• Direct-replacement accessory for standard NFPA cylinder rod connections
• Lightweight at 0.5 pounds, minimizing added load on the actuator assembly
• Sold individually — package quantity of 1

Compatibility

Designed for use with NFPA-dimensioned air cylinders in the 1-1/2 inch to 2-1/2 inch bore range, conforming to standard NFPA cylinder rod end configurations.

Installation Notes

Installation is performed by qualified mechanical or pneumatic system technicians. Before servicing any pneumatic cylinder or rod connection, depressurize the air supply and lock out the system in accordance with applicable LOTO procedures. Verify rod thread size and coupler engagement before applying system pressure. Do not exceed the cylinder manufacturer's rated load or operating pressure for the assembly.
