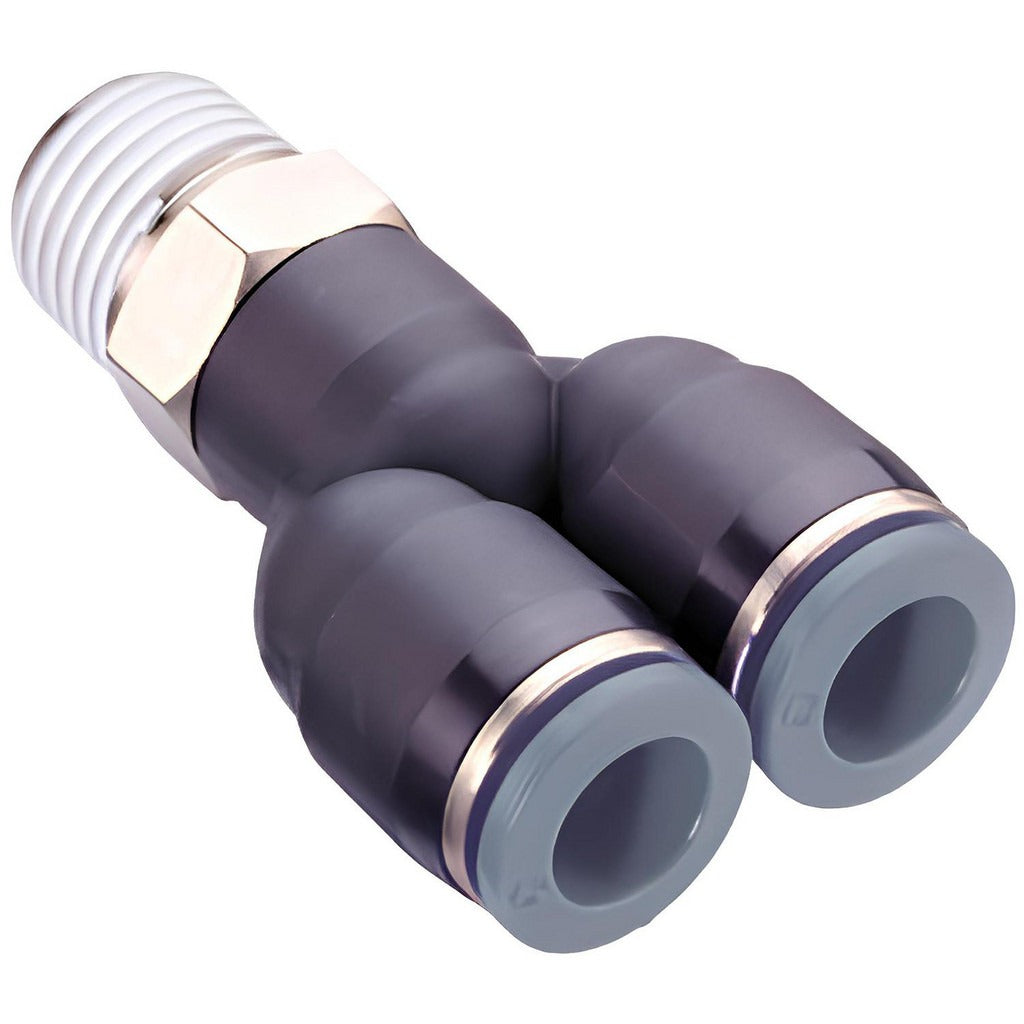

Norgren C24880218 Swivel Y Adapter 5/32 in Od 1/8 Nptf Brass

Product Description

The NORGREN C24880218 is a brass push-to-connect swivel Y adapter fitting designed to split or join pneumatic or fluid lines in general-purpose plumbing and instrumentation applications. It accepts 5/32 inch outside diameter tubing on the tube ends and connects to a 1/8 inch NPTF male threaded port, providing a leak-resistant seal at both the compression and threaded interfaces. Rated to 150 psi maximum working pressure, this fitting handles a wide service temperature range of 0 degrees F to 175 degrees F. The swivel feature allows the threaded end to rotate during installation, reducing stress on tubing and making alignment straightforward in tight assemblies.

This adapter is suited for general-purpose pneumatic, low-pressure fluid, and instrumentation line work where a compact Y-branch connection is needed. The push-to-connect design eliminates the need for ferrules or additional fittings, making it practical for production environments, panel builds, and field service on pneumatic control systems. The NPTF thread form creates a pressure-tight seal with minimal use of thread sealant.

Key Features

• Push-to-connect tube ends accept 5/32 inch OD tubing with no ferrule required
• 1/8 inch NPTF male thread provides a pressure-tight tapered thread connection
• Swivel design eases alignment and reduces installation stress on tubing
• 150 psi maximum working pressure rating
• Nitrile O-ring seals for reliable performance across general-purpose media
• Brass construction for corrosion resistance and durability in typical pneumatic environments

Compatibility

Designed for general-purpose pneumatic and low-pressure fluid systems using 5/32 inch OD tubing with 1/8 inch NPTF male ported components.

Installation Notes

Installation should be performed by a qualified plumbing or instrumentation technician familiar with push-to-connect fittings and NPT thread sealing practices. Depressurize and isolate the system fully before removing or installing any fittings. Inspect tubing ends for squareness and freedom from burrs before inserting into the push-to-connect ports. Apply an appropriate thread sealant to the NPTF threads per the system manufacturer's recommendations and relevant code requirements.
