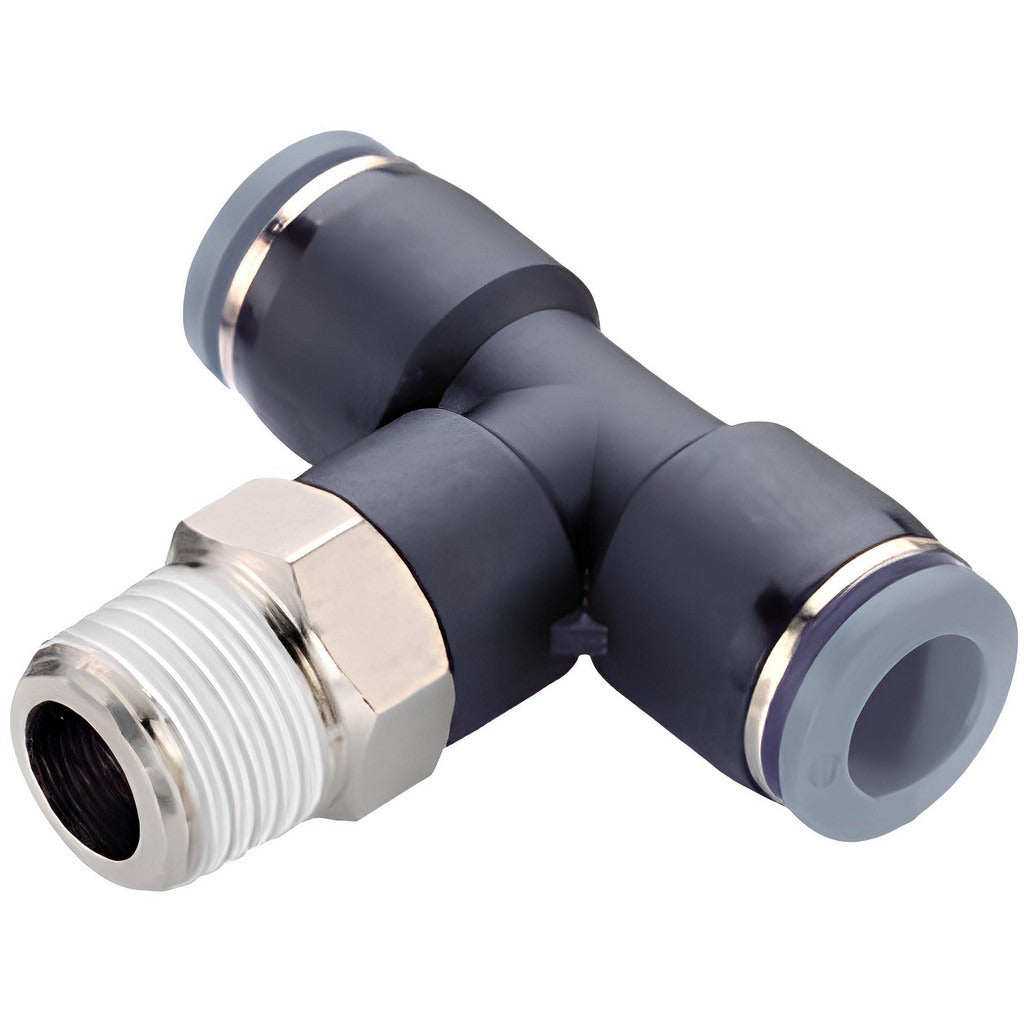

Norgren C24670628 Swivel Tee Ptc Fitting 3/8in Od Brass

Product Description

The NORGREN C24670628 is a push-to-connect swivel tee adapter fitting designed for general-purpose pneumatic and fluid tubing systems. It combines a tube-to-male NPT connection on one port with push-to-connect tube ports on the remaining two, allowing technicians to branch a 3/8-inch OD tube line while maintaining a 1/4-inch NPTF male thread connection to a fixed component. Constructed from brass with a nitrile O-ring, the fitting handles working pressures up to 150 psi and operates across a temperature range of 0 degrees F to 175 degrees F. The swivel feature on the tee aids alignment during installation, reducing thread-cross risk on the NPT port.

This fitting suits general-purpose pneumatic, compressed air, and fluid distribution lines in commercial and industrial settings. It is commonly installed where a tubing run must branch off to a threaded port on a valve, manifold, or equipment panel. HVAC technicians, plumbers, and industrial maintenance professionals use this type of fitting when routing 3/8-inch OD tube lines that require a perpendicular branch with a male NPT exit. The push-to-connect design allows for fast, tool-free tube insertion on the tube ports.

Key Features

• Push-to-connect tube ports accept 3/8-inch OD tubing with no tools required
• 1/4-inch NPTF male thread provides a reliable, pressure-rated threaded connection
• Swivel tee body simplifies alignment when threading into fixed ports
• Brass construction offers corrosion resistance for air, water, and compatible fluid service
• Nitrile O-ring sealing rated for 0 degrees F to 175 degrees F operating range
• Rated to 150 psi maximum working pressure

Compatibility

Designed for general-purpose pneumatic and fluid systems using 3/8-inch OD tubing with 1/4-inch NPTF male thread connections.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic or fluid piping systems. Depressurize and isolate the system completely before removing or installing any fittings. Thread the NPTF male port into the receiving fitting by hand first to confirm thread engagement before applying tools, and do not overtighten brass fittings. Ensure tubing is cut cleanly and squarely and inserted fully into the push-to-connect ports until it seats; tug gently to confirm retention before repressurizing.
