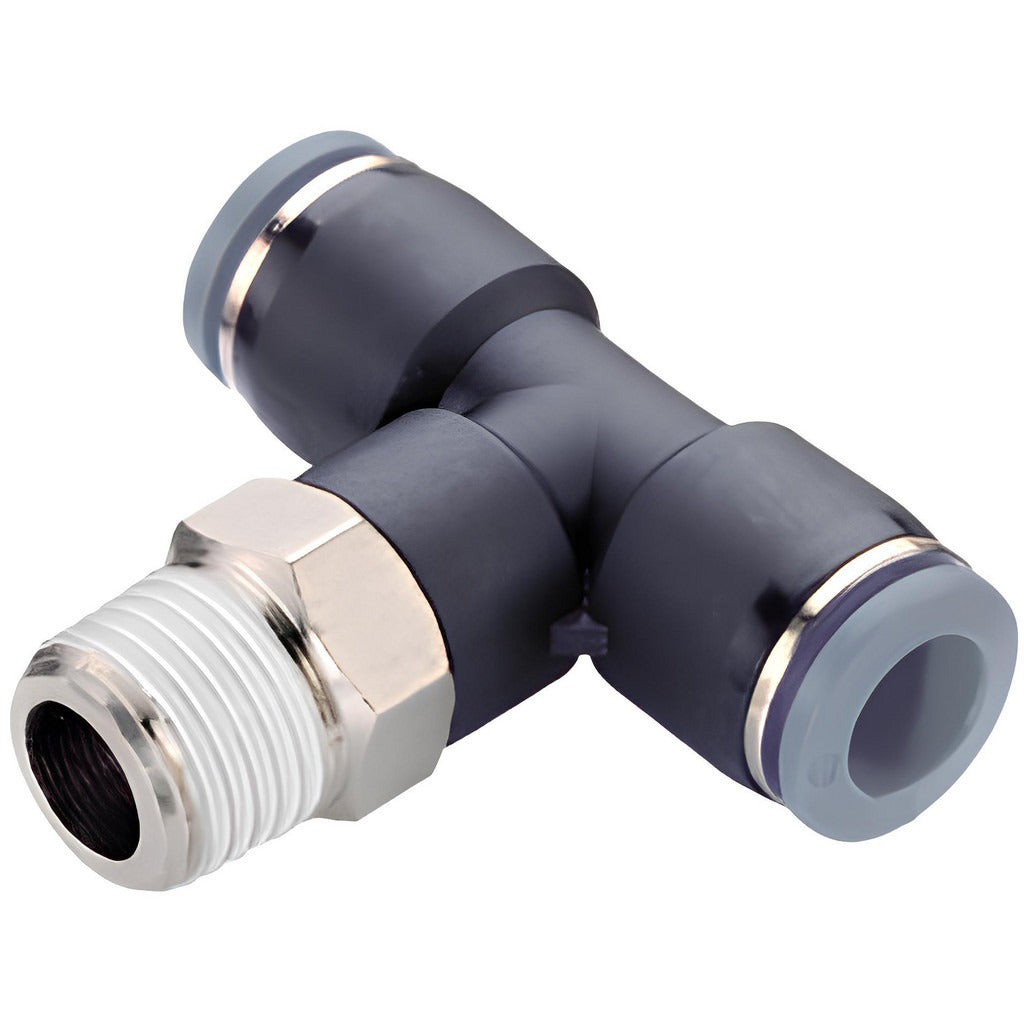

Norgren C24670528 Swivel Tee Adapter 5/16in Od Brass

Product Description

The NORGREN C24670528 is a brass push-to-connect swivel tee adapter designed for general-purpose pneumatic and fluid-line applications. It connects tubing on two ports via push-to-connect fittings and terminates the branch port with a 1/4 inch NPTF male thread. The 5/16 inch OD tube ports accept tubing without additional ferrules or tools, and the swivel feature on the tee body allows the fitting to be rotated for alignment during assembly. Rated to 150 psi maximum working pressure, it handles temperatures from 0 degrees F to 175 degrees F. The nitrile O-ring provides a reliable seal across the tubing ports. Licensed plumbers, HVAC technicians, and industrial pipe fitters install this type of fitting on compressed air and low-pressure fluid lines.

This fitting is suited for general-purpose plumbing and pneumatic systems where a tee connection is needed between 5/16 inch OD tubing and a 1/4 inch male NPT threaded port. Typical installations include compressed air distribution lines, control-line assemblies, and light-duty hydraulic or fluid transfer circuits in both commercial and light industrial settings. The push-to-connect design speeds up assembly on systems where tubing must be routed to multiple branch points from a single run.

Key Features

• Push-to-connect ports accept 5/16 inch OD tubing without ferrules or compression sleeves
• Swivel tee body allows rotational alignment during installation to reduce tubing stress
• 1/4 inch NPTF male thread branch port for direct connection to pipe fittings or manifold ports
• Brass construction provides corrosion resistance in air, water, and light fluid service
• Nitrile O-ring seals tubing ports across a wide operating temperature range
• Rated to 150 psi for compatibility with standard compressed air system pressures

Compatibility

Designed for general-purpose pneumatic and fluid-line systems using 5/16 inch OD tubing with 1/4 inch NPTF male-threaded connections.

Installation Notes

Install and service push-to-connect fittings only after depressurizing and isolating the system from the air or fluid supply. Ensure tubing ends are cut square and free of burrs before inserting into the push-to-connect ports to maintain a reliable seal. The 1/4 inch NPTF thread should be made up with an appropriate thread sealant or PTFE tape in accordance with applicable plumbing or pneumatic system codes. Do not exceed the rated working pressure or temperature limits stated on this fitting.
