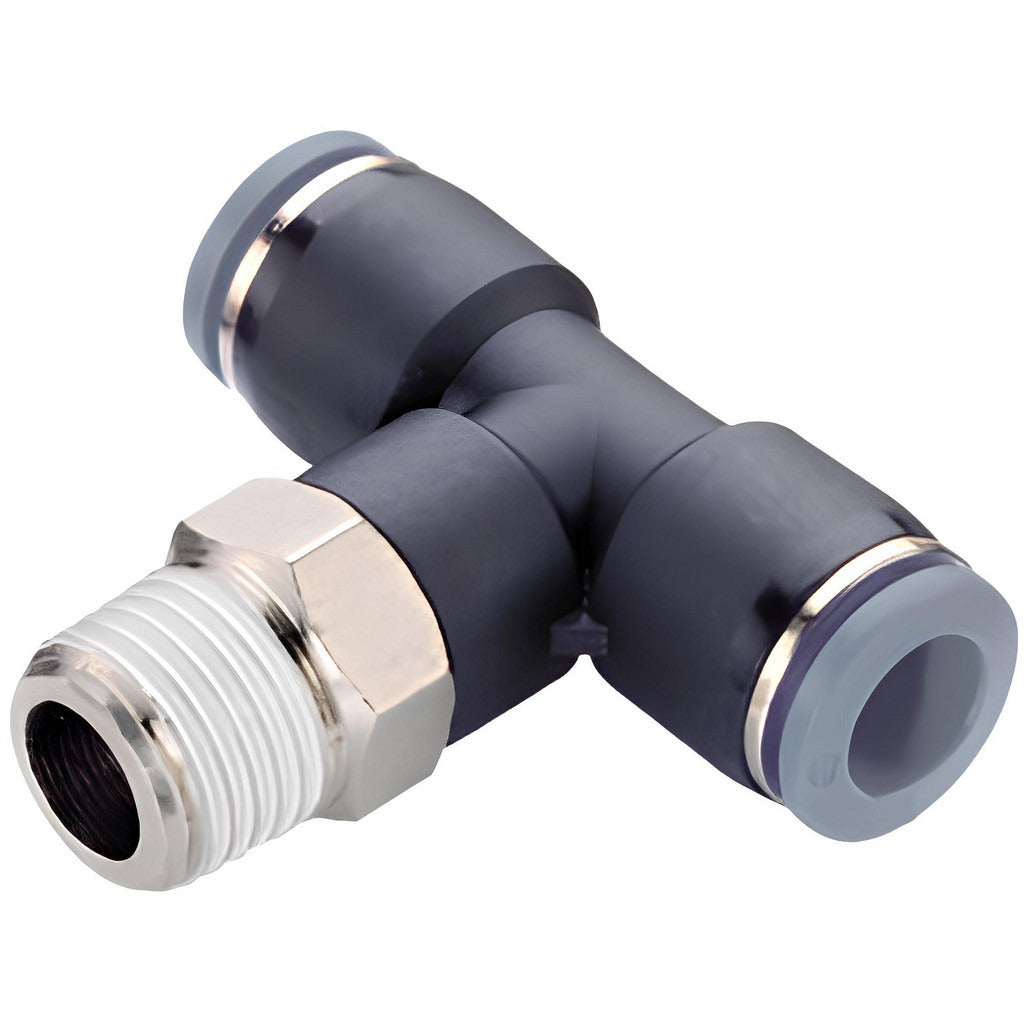

Norgren C24670438 Swivel Tee Adapter 1/4 in Od 3/8 in Nptf

Product Description

The NORGREN C24670438 is a brass push-to-connect swivel tee adapter designed for pneumatic and fluid line connections in general-purpose applications. It combines a tube-to-male NPT configuration in a tee arrangement, allowing technicians to branch a 1/4 inch OD tube line while making a 3/8 inch NPTF male threaded connection. Rated to 150 psi maximum working pressure, it handles temperatures from 0 degrees F to 175 degrees F. The swivel design simplifies installation by allowing the fitting body to rotate during assembly without disturbing connected tubing. The nitrile O-ring provides a reliable seal across its operating range.

This fitting is suited for general-purpose pneumatic plumbing, compressed air distribution, and fluid handling systems in industrial, commercial, and HVAC control applications. It is typically installed by HVAC technicians, pipefitters, or pneumatic system technicians when routing control air lines or instrument air tubing that requires a tee branch with a threaded port. The compact brass body makes it appropriate for panel-mounted or inline use where space is limited.

Key Features

• Push-to-connect tube ports accept 1/4 inch OD tubing without additional tools for fast, secure connections
• Swivel body allows rotation during makeup without twisting connected tubing
• Brass construction provides corrosion resistance in compressed air and light fluid service
• 3/8 inch NPTF male thread ensures a pressure-tight mechanical seal with matching female ports
• Nitrile O-ring delivers reliable sealing from 0 degrees F to 175 degrees F
• Rated to 150 psi for compatibility with standard shop-air and instrument-air pressures

Compatibility

Designed for general-purpose pneumatic and fluid systems using 1/4 inch OD tubing and 3/8 inch NPTF female-threaded ports. Suitable for use with compatible push-to-connect fittings and tubing in compressed air or light-duty fluid handling circuits.

Installation Notes

Depressurize and lock out the air or fluid system before removing or installing any fittings. Push-to-connect ports require clean, burr-free tube ends cut square to the OD for a proper seal. Hand-tighten the NPTF threaded end into the mating port, then wrench-tighten to the fitting manufacturer standard per NPTF practice. Do not overtighten threaded connections or exceed the rated 150 psi working pressure.
