Norgren C24470438 90 Swivel Elbow Ptc Fitting 1/4in Od

Product Description

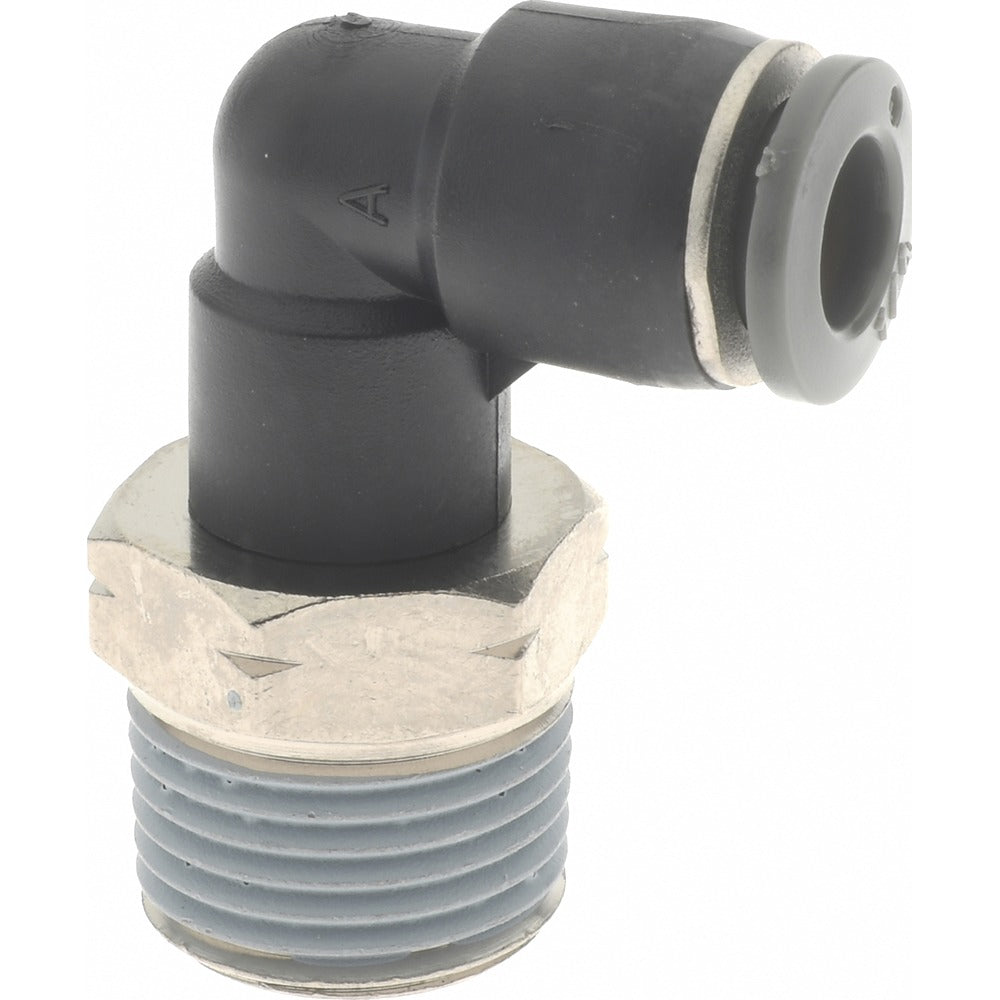

The NORGREN C24470438 is a brass push-to-connect 90-degree swivel elbow tube fitting designed for pneumatic and fluid distribution lines. It connects a 1/4-inch OD tube on each end to a 3/8-inch male NPTF threaded port, allowing fast, tool-free tube insertion alongside a swiveling threaded connection that simplifies routing in tight spaces. Rated to 150 psi maximum working pressure, it handles operating temperatures from 0 degrees F to 175 degrees F. The nitrile O-ring sealing element provides reliable resistance to common pneumatic system fluids and lubricants. This fitting is installed by HVAC technicians, plumbers, and industrial piping mechanics working with compressed air, water, or compatible fluid lines.

This fitting is suited for light industrial, commercial HVAC, and pneumatic control applications where a direction change is needed between a push-to-connect tube run and a male NPT threaded port. The swivel elbow design reduces stress on tubing during installation by allowing the threaded end to rotate independently. Typical install scenarios include pneumatic actuator supply lines, compressed air distribution manifolds, and equipment control panels where 1/4-inch OD tubing meets NPT-tapped ports or valves rated for the 150 psi working envelope.

Key Features

• Push-to-connect on both tube ends — no ferrules or compression sleeves required
• 90-degree swivel elbow geometry simplifies routing and reduces tubing stress
• 3/8-inch NPTF male thread for leak-resistant tapered-thread port connections
• 150 psi maximum working pressure rating
• Operating range of 0 degrees F to 175 degrees F with nitrile O-ring seal
• Brass construction for corrosion resistance in air and water service

Compatibility

Designed for use with 1/4-inch OD push-to-connect compatible tubing and 3/8-inch NPTF male threaded ports in pneumatic or fluid distribution systems operating within the rated pressure and temperature range.

Installation Notes
