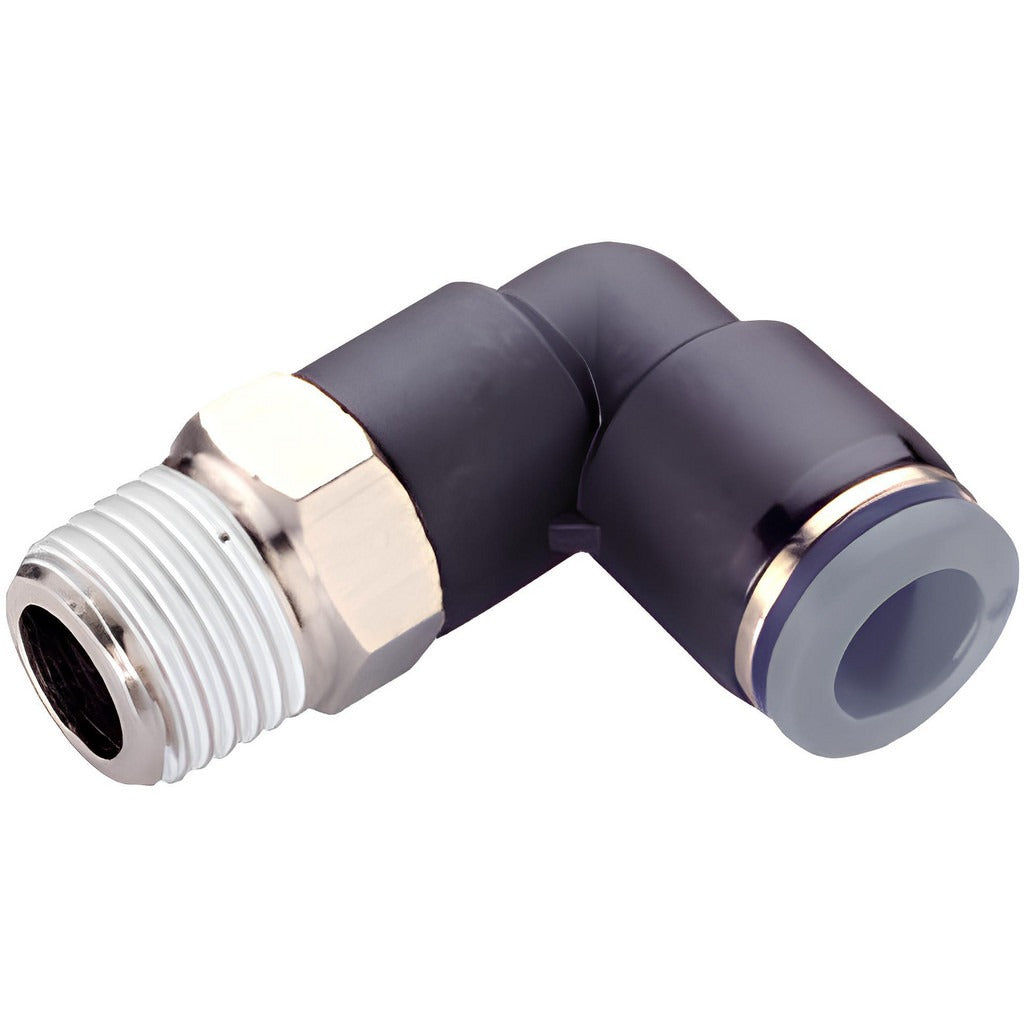

Norgren C24470228 90 Swivel Elbow Fitting 5/32 in Od

Product Description

The NORGREN C24470228 is a push-to-connect 90-degree swivel elbow tube fitting designed for general-purpose pneumatic and fluid-transfer applications. It connects tube to male NPT on one end and tube to male on the other, allowing a right-angle path change with swivel movement for easier alignment during installation. The fitting is machined from brass and rated to 150 psi maximum working pressure. An integrated nitrile O-ring provides a reliable seal across a working temperature range of 0 degrees F to 175 degrees F. The push-to-connect design allows fast, tool-free tube insertion without solder or compression sleeves.

This fitting is suited for residential and light commercial applications wherever a 5/32-inch OD tube must make a 90-degree turn and terminate at a 1/4-inch NPTF male port. Typical install scenarios include pneumatic control lines, instrumentation tubing, and general-purpose air or fluid circuits in HVAC controls, compressed-air systems, and similar service environments. It is installed by HVAC technicians, plumbers, and instrumentation technicians during new construction or retrofit work.

Key Features

• Push-to-connect design for fast, tool-free tube insertion and secure hold
• 90-degree swivel elbow allows post-installation alignment adjustment
• Brass construction for corrosion resistance and durability in pneumatic service
• Nitrile O-ring seal rated from 0 degrees F to 175 degrees F
• 150 psi maximum working pressure for general-purpose pneumatic circuits
• 1/4-inch NPTF male thread with 5/32-inch OD tube connection on each leg

Compatibility

Designed as an OEM-style replacement or service fitting for general-purpose pneumatic and fluid-transfer tubing systems using 5/32-inch OD tube and 1/4-inch NPTF male port connections.

Installation Notes

Depressurize and isolate the pneumatic or fluid circuit completely before removing or installing any fittings. Ensure the 1/4-inch NPTF male thread is engaged straight and hand-tightened before applying a wrench to avoid cross-threading the brass fitting body. Cut tube ends square and deburr before inserting into the push-to-connect collet to ensure a leak-free seal. Thread sealant appropriate for NPTF connections may be used per local code and system requirements.
