Norgren C24470210 90 Swivel Elbow Fitting 5/32 in 10-32

Product Description

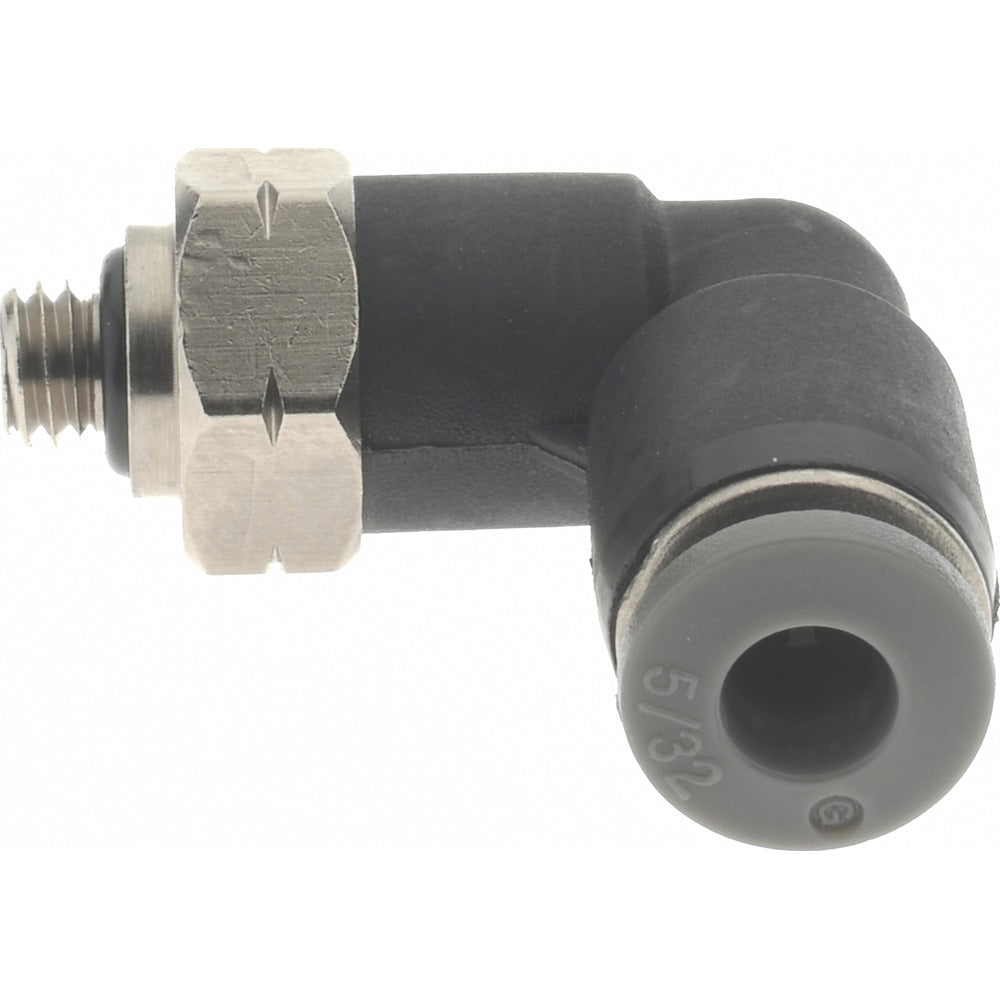

The NORGREN C24470210 is a push-to-connect 90-degree swivel elbow tube fitting designed for pneumatic and fluid-line assemblies in industrial, HVAC, and automation applications. It connects a 5/32-inch OD tube to a 10-32 UNF male thread, with the elbow body swiveling for easy routing and alignment during installation. Constructed from brass with a nitrile O-ring seal, this fitting handles working pressures up to 150 psi and operates across a temperature range of 0 to 175 degrees F. Licensed tradespeople and technicians working on compressed-air circuits, instrument lines, or pneumatic control systems are the primary installers.

This fitting is suited for residential and light commercial pneumatic tubing systems where a compact 90-degree direction change is needed at a threaded port. The 10-32 UNF male thread end engages standard tapped ports on valves, manifolds, cylinders, and control components. At 0.84 inches overall length, the C24470210 fits in confined panel or valve-block installations where space is limited. It is commonly installed in pneumatic control panels, instrumentation enclosures, and HVAC actuator assemblies.

Key Features

• Push-to-connect tube end accepts 5/32-inch OD tubing for tool-free, secure insertion
• 90-degree swivel body allows post-installation angular adjustment to reduce line stress
• Brass construction provides corrosion resistance and durability in pneumatic service
• Nitrile O-ring seal maintains integrity across a 0 to 175 degrees F operating range
• Rated to 150 psi maximum working pressure
• Compact 0.84-inch overall length suits tight installation envelopes

Compatibility

Designed as an OEM-style push-to-connect fitting for pneumatic and fluid-line systems using 5/32-inch OD tubing and 10-32 UNF threaded ports.

Installation Notes

Installation is typically performed by licensed instrumentation technicians or HVAC mechanics. Depressurize and lock out the pneumatic circuit completely before removing or installing any fittings. Confirm the mating port thread is 10-32 UNF and clean before engagement; hand-tighten the male thread end, then snug with an appropriate wrench - do not overtighten, as brass threads can be damaged. After pressurizing the system, verify the push-to-connect tube retention and check for leaks with an approved leak-detection method.
