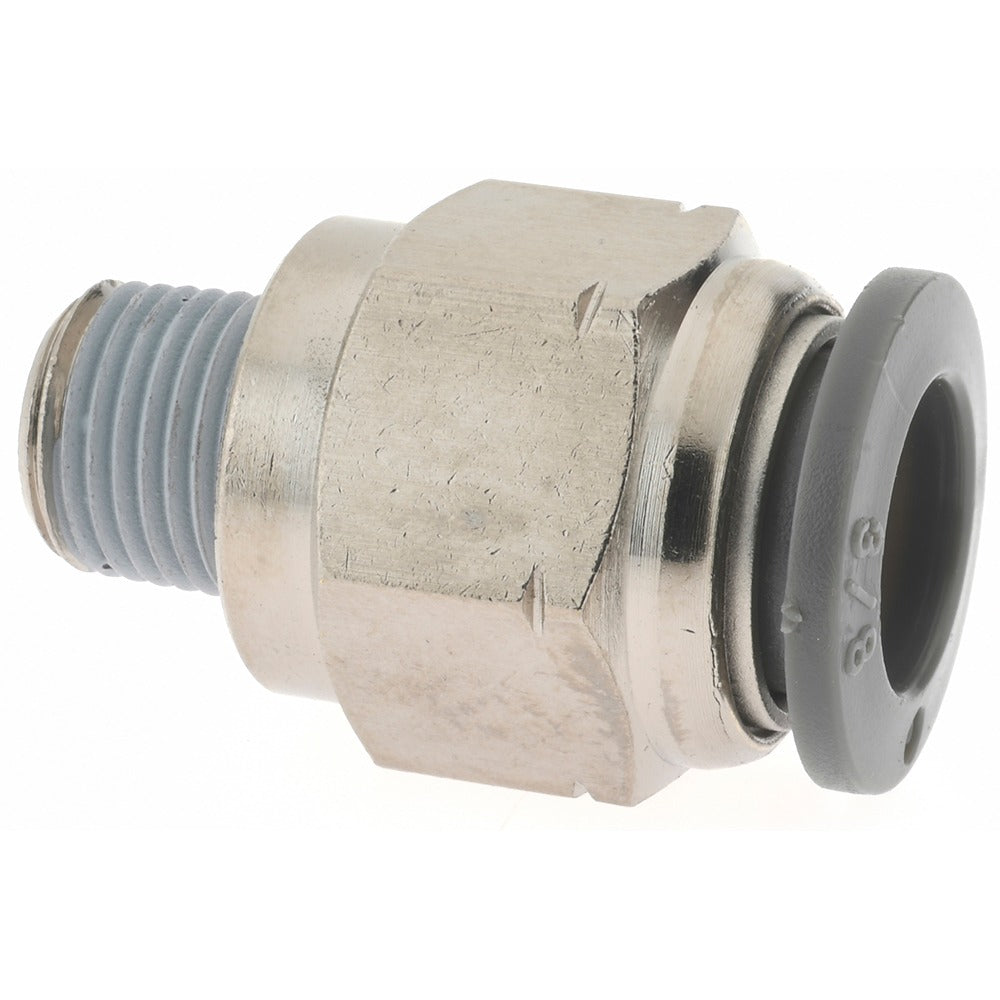

Norgren C24250618 Push-to-connect Adapter 3/8 in Od Brass

Product Description

The NORGREN C24250618 is a straight push-to-connect adapter fitting designed for pneumatic and fluid transfer plumbing lines. It connects a 3/8-inch OD tube on each end to a 1/8-inch male NPTF threaded port, allowing a tube-to-tube run with an in-line male NPT connection point. Constructed from brass, the fitting handles working pressures up to 150 psi and a temperature range of 0 to 175 degrees F. The nitrile O-ring provides a reliable push-to-connect seal. Licensed plumbers, pipefitters, and HVAC technicians working with pneumatic controls or compressed-air lines typically install this fitting.

This adapter is suited for light industrial, commercial, and trade service applications where a straight inline connection between tubing and a male NPT port is needed. Typical use cases include pneumatic control circuits, compressed-air distribution, and fluid handling systems where 3/8-inch OD tubing terminates at a 1/8-inch NPTF threaded component. The push-to-connect design speeds installation and reduces the need for additional ferrules or compression hardware. At 1.19 inches overall length, the fitting fits in tight panel and manifold installations.

Key Features

• Push-to-connect design on both tube ends for tool-free tube insertion
• 3/8-inch OD tube compatibility on each connection side
• 1/8-inch NPTF male threaded center port for direct inline NPT connection
• Brass body rated to 150 psi maximum working pressure
• Nitrile O-ring seal withstands temperatures from 0 to 175 degrees F
• Compact overall length of 1.19 inches for tight-space installations

Compatibility

Designed as an OEM-style straight adapter for pneumatic and fluid plumbing systems using 3/8-inch OD tubing and 1/8-inch NPTF male threaded ports.

Installation Notes

This fitting is typically installed by licensed plumbers, pipefitters, or HVAC technicians. Depressurize and isolate the line completely before removing or installing any push-to-connect fitting. Confirm the tubing OD is clean, burr-free, and cut square before insertion to ensure a proper O-ring seal. NPTF threads are self-sealing by design, but follow applicable IPC or IFGC guidelines for thread engagement and system pressure testing after installation.
