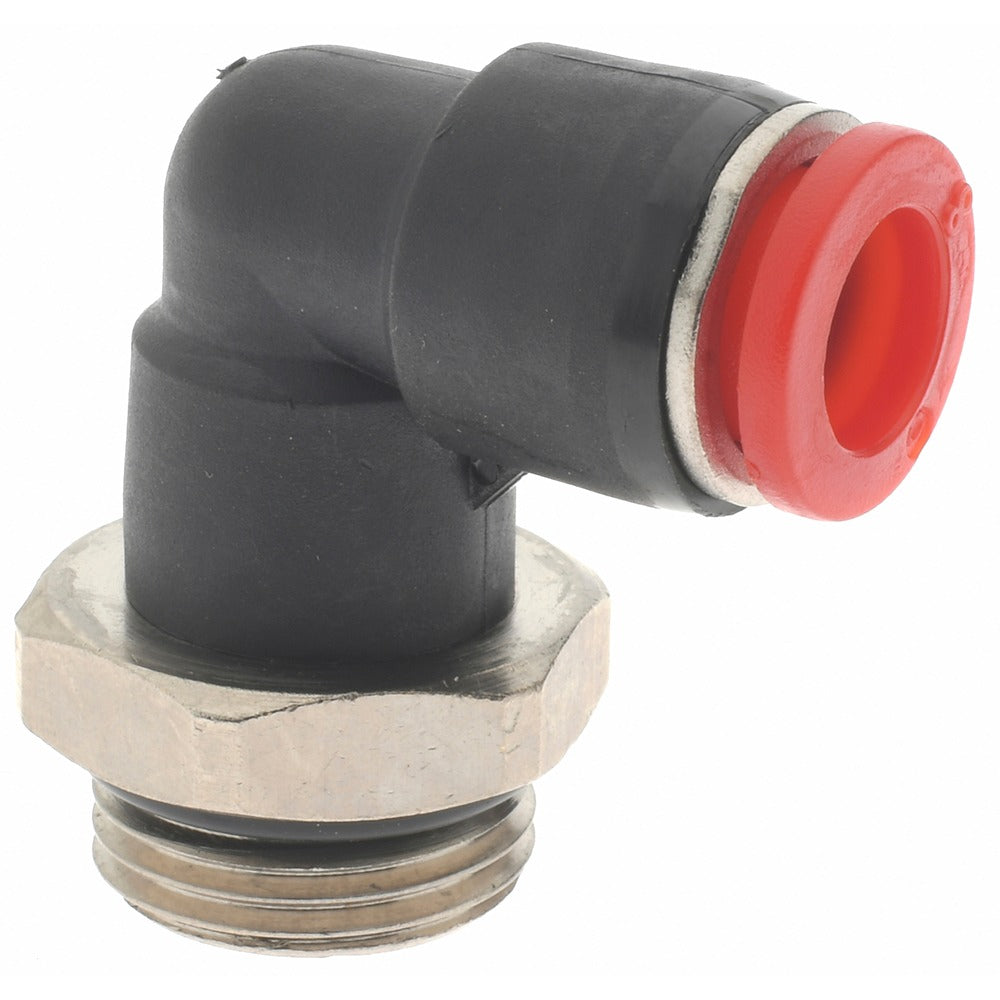

Norgren C02470838 Push-to-connect Adapter Bspp Brass

Product Description

The NORGREN C02470838 is a push-to-connect tube fitting adapter with a tube x male x tube x male BSPP connection configuration. Constructed from brass, this adapter is rated for a maximum working pressure of 150 psi and accepts 8 mm outside diameter tubing. It is designed for pneumatic and fluid-handling plumbing assemblies found in industrial and mechanical systems. Plumbers, pipefitters, and mechanical contractors install this type of fitting when connecting tube runs to male BSPP threaded ports on valves, manifolds, or instrumentation. The nitrile O-ring seals the connection across a service temperature range of 0 degrees F to 175 degrees F.

This adapter suits applications in compressed air lines, light hydraulic circuits, and process fluid systems that rely on BSPP (British Standard Parallel Pipe) threaded interfaces. The push-to-connect tube ends allow for quick assembly and disassembly without specialized toolting, making it practical for panel builds, machine plumbing, and field service where tubing runs use 8 mm OD tube. It is sold individually and requires no additional fittings for a complete tube-to-male BSPP transition.

Key Features

• Push-to-connect tube ends accept 8 mm outside diameter tubing for tool-free installation and removal
• Male BSPP thread provides a parallel-thread connection to BSPP-ported equipment
• Brass body construction offers corrosion resistance suitable for air and compatible fluid service
• Nitrile O-ring seals maintain integrity from 0 degrees F to 175 degrees F
• 150 psi maximum working pressure rating
• Compact adapter format transitions tube runs directly to male BSPP ports without additional couplings

Compatibility

Designed as an OEM-style replacement or drop-in fitting for pneumatic and fluid-handling systems using 8 mm OD tubing and male BSPP threaded ports.

Installation Notes

Installation is performed by pipefitters, mechanical technicians, or pneumatic system assemblers. Depressurize and isolate the system before removing or installing any fittings. Verify the mating port is a BSPP parallel thread before installation, as BSPP and BSP tapered (BSPT) threads are not interchangeable. Push-to-connect ends require clean, burr-free tube cuts and full tube insertion to seat the internal collet and O-ring for a leak-free connection.
