Norgren C02470405 90 Swivel Elbow Fitting M5 Brass 150 Psi

Product Description

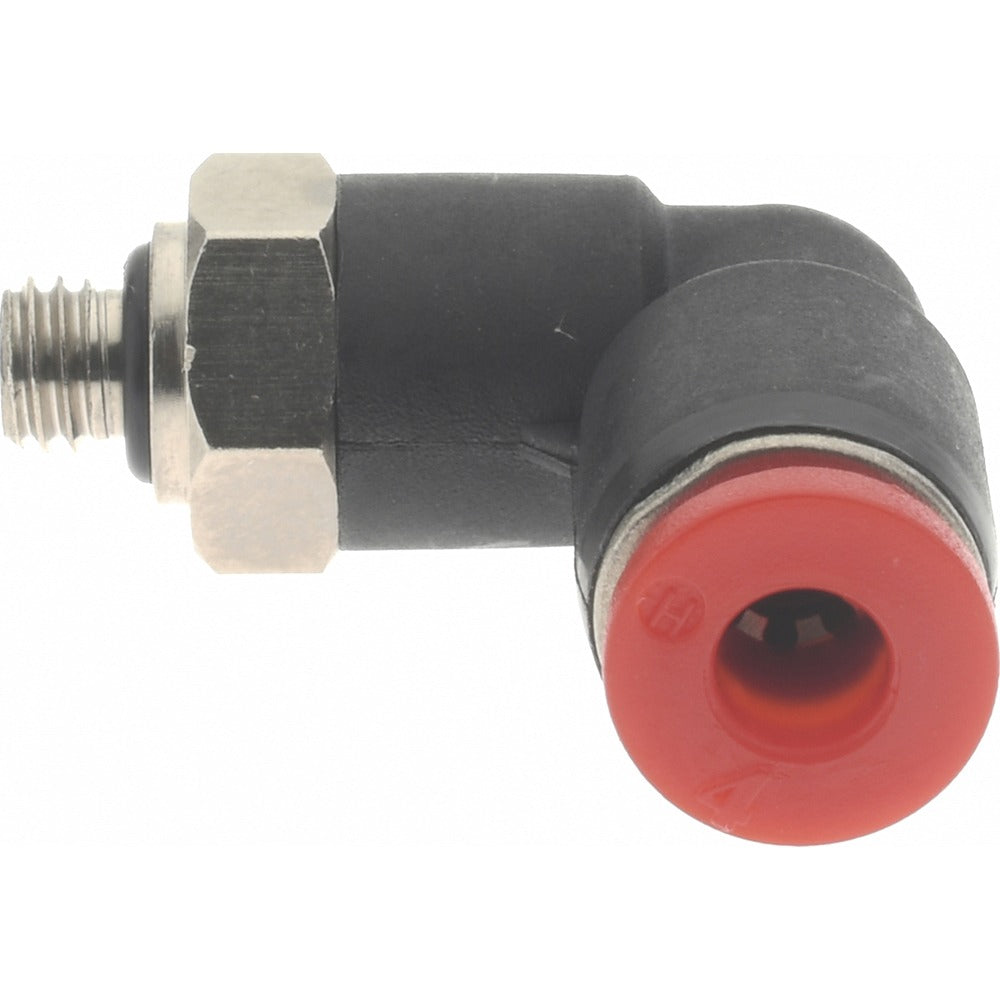

The NORGREN C02470405 is a push-to-connect 90-degree swivel elbow tube fitting designed to connect a 4 mm outside-diameter tube to an M5 metric threaded port. Constructed from brass with a nitrile O-ring, the fitting supports a maximum working pressure of 150 psi and an operating temperature range of 0 to 175 degrees F. The swivel design allows the elbow to rotate after assembly, simplifying routing in tight spaces. This fitting is intended for use in pneumatic plumbing, fluid handling, and instrumentation lines where a compact right-angle transition between a tube and a metric threaded port is required.

This fitting is suited for light-duty pneumatic systems, instrumentation panels, and fluid control assemblies in industrial and commercial applications. The push-to-connect end accepts 4 mm OD tubing for tool-free insertion, while the M5 metric thread end fastens into standard M5 threaded ports on valves, manifolds, cylinders, and other pneumatic components. The compact overall length of approximately 27.25 mm makes it practical in space-constrained installations.

Key Features

• Push-to-connect end accepts 4 mm OD tubing without additional tools
• 90-degree swivel elbow body rotates after assembly for flexible tube routing
• M5 metric thread end for direct connection to standard M5 threaded ports
• Brass construction for corrosion resistance in pneumatic and fluid service
• Nitrile O-ring provides a reliable seal across the rated temperature range
• Rated to 150 psi maximum working pressure

Compatibility

Designed as an OEM-style replacement or direct-fit push-to-connect fitting for pneumatic systems and fluid handling assemblies using 4 mm OD tubing and M5 metric threaded ports.

Installation Notes

Installation is typically performed by qualified pneumatic or fluid system technicians. Always depressurize and lock out the system before removing or installing fittings. Insert tubing fully into the push-to-connect end until it seats against the internal stop to ensure a leak-free connection. Thread the M5 end into the mating port by hand first to avoid cross-threading, then tighten to the port manufacturer's specification using an appropriate open-end wrench.
