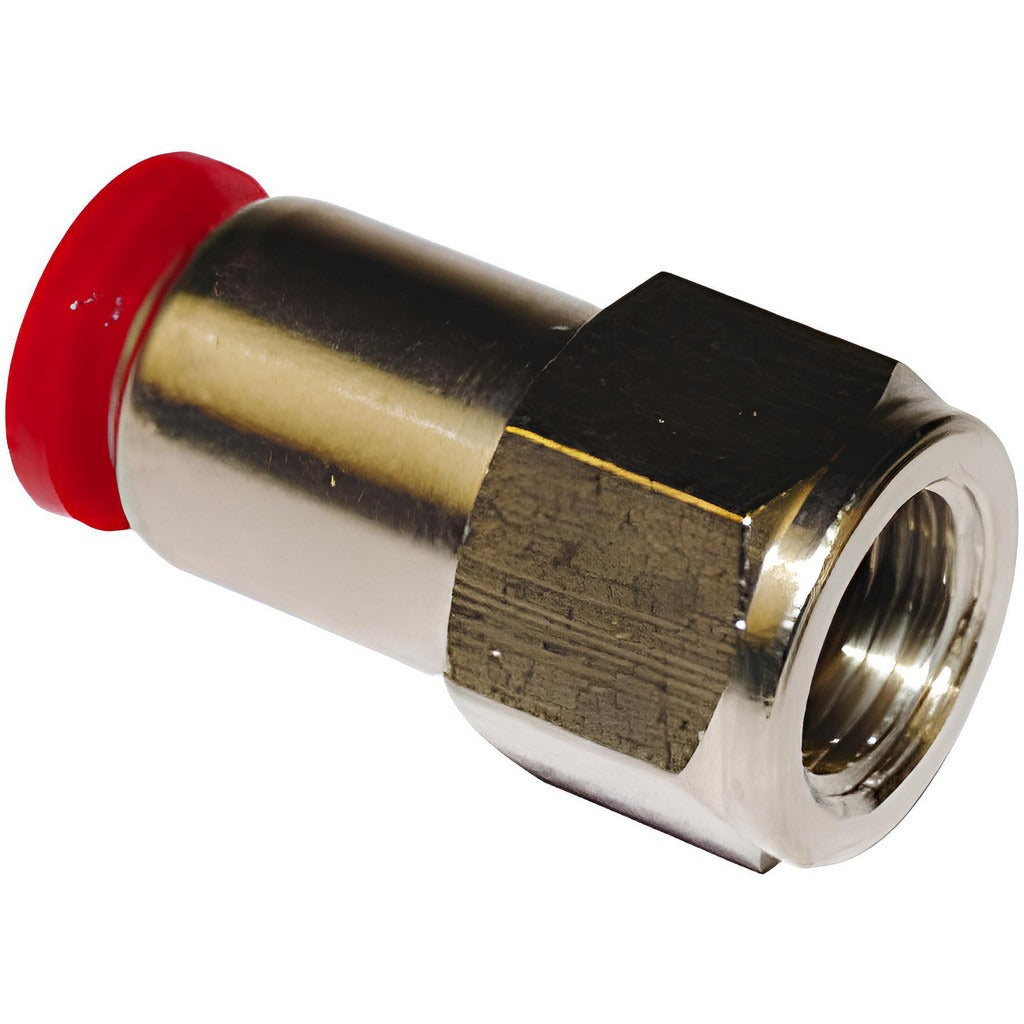

Norgren C02260628 Female Adapter Straight Bspp Fitting

Product Description

The NORGREN C02260628 is a straight push-to-connect female adapter tube fitting designed for general-purpose pneumatic and fluid line applications. It provides a tube-to-female BSPP connection on both ends, accepting 6mm outside diameter tubing on the push-in ports. Constructed from brass with a nitrile O-ring, this fitting is rated to 150 psi maximum working pressure and handles temperatures from 0 degrees F to 175 degrees F. The push-to-connect mechanism allows fast, tool-free tube insertion, making it well-suited for assembly and service work where quick connections are required.

This fitting is intended for general-purpose pneumatic, compressed air, and compatible fluid distribution systems. It is commonly used in light industrial, HVAC controls, and automation plumbing where 1/4-inch BSPP female porting is specified. The straight configuration suits inline connections between tubing runs and female-ported valves, manifolds, or instruments. Licensed plumbers, HVAC technicians, and instrumentation technicians typically install this type of fitting in both residential and commercial settings.

Key Features

• Push-to-connect design accepts 6mm OD tubing without tools or ferrules
• Straight female adapter configuration for inline tube-to-BSPP port connections
• Brass body construction for durability and corrosion resistance in pneumatic service
• Nitrile O-ring provides reliable sealing across the rated temperature range
• Rated to 150 psi maximum working pressure
• Operating temperature range of 0 degrees F to 175 degrees F

Compatibility

Designed for general-purpose pneumatic and compatible fluid systems using 6mm OD tubing and 1/4-inch BSPP female-ported components.

Installation Notes

Depressurize and de-energize the system completely before installing or removing any tube fitting. Ensure tubing is cut cleanly and squarely, and that the tube OD measures 6mm before insertion into the push-to-connect port. Thread engagement on the BSPP female ports should be confirmed hand-tight before applying system pressure. Verify that all connections are within the rated pressure and temperature limits before returning the system to service.
