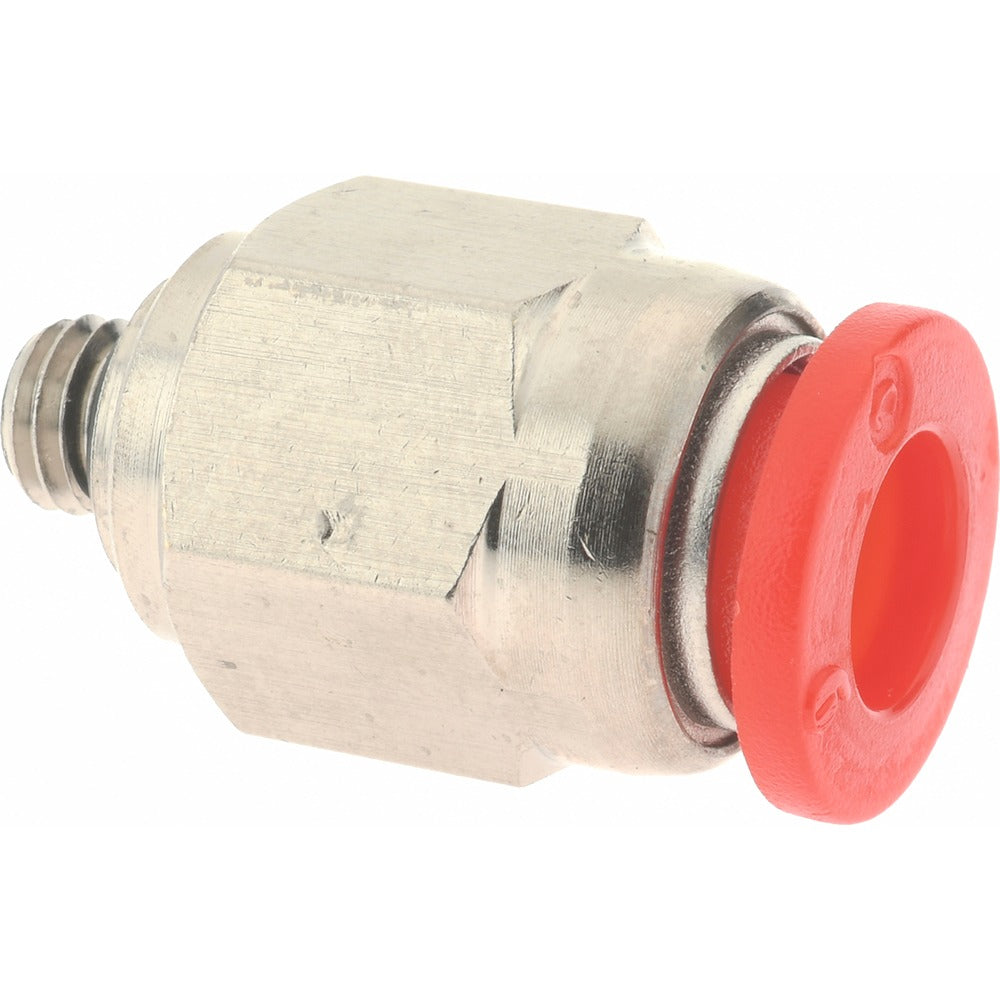

Norgren C02250605 Push-to-connect Tube Fitting M5

Product Description

The NORGREN C02250605 is a straight push-to-connect tube fitting designed for tube-to-tube connections using an ISO G male thread configuration with an M5 thread size. Constructed from brass, this fitting accepts a 6 millimeter outside diameter tube and is rated for a maximum working pressure of 150 psi. The push-to-connect design allows for fast, tool-free tube insertion, making it well suited for pneumatic plumbing tasks where quick assembly and reliable sealing are priorities. A nitrile O-ring provides the primary tube seal, offering compatibility with common pneumatic media and resistance across a working temperature range of 0 to 175 degrees F.

This fitting is used in pneumatic control systems, automation equipment, and fluid handling assemblies where compact straight connections are needed. The ISO G male thread interface is common in industrial pneumatic circuits and control panels. At an overall length of 23.60 millimeters, it fits into space-constrained manifold or component mounting applications. Installation is performed by trade technicians and automation service professionals working on compressed air or low-pressure fluid distribution systems.

Key Features

• Push-to-connect design for tool-free tube insertion and removal
• ISO G male thread, M5 size, for standard pneumatic component interfaces
• Brass construction for durability in pneumatic and light fluid service
• Nitrile O-ring seal rated for 0 to 175 degrees F operating range
• Rated to 150 psi maximum working pressure
• Accepts 6 millimeter outside diameter tubing

Compatibility

Designed as an OEM-style replacement or addition for pneumatic systems using ISO G male M5 thread ports and 6 millimeter outside diameter push-to-connect tubing.

Installation Notes

Depressurize and isolate the pneumatic circuit completely before removing or installing any fittings. Confirm the mating port thread is ISO G female M5 before installation to avoid cross-threading or leaks. Ensure tubing is cut cleanly and squarely and inserted fully until it bottoms out in the collet to achieve a proper seal. Follow applicable pneumatic system codes and equipment manufacturer guidelines for pressure testing after installation.
