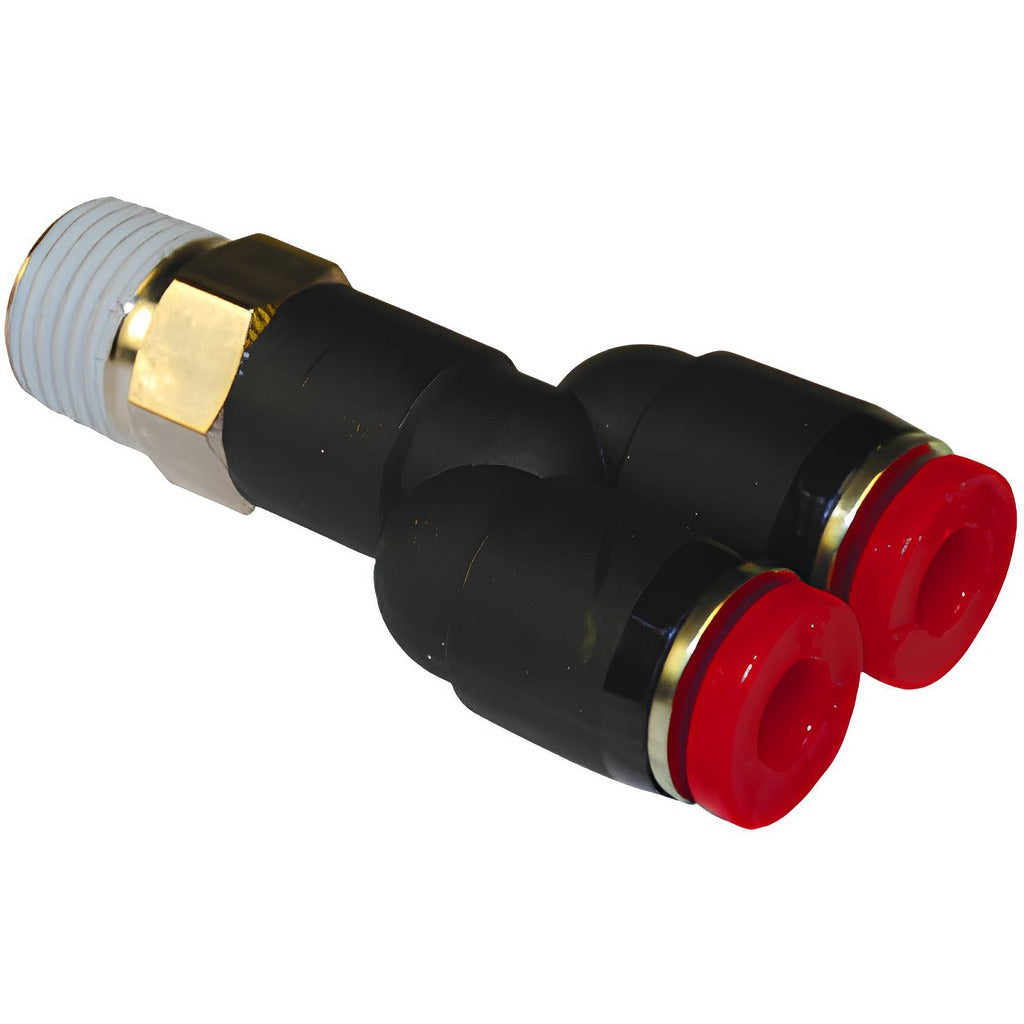

Norgren C01881048 Push-to-connect Male Bspt Fitting Brass

Product Description

The NORGREN C01881048 is a push-to-connect tube-to-male BSPT tube fitting designed for use in pneumatic and fluid distribution systems. Constructed from brass, it accommodates a 10 mm outside diameter tube and connects to a male BSPT threaded port. The fitting handles pressures up to 150 psi and operates across a temperature range of 0 degrees F to 175 degrees F. An integrated nitrile O-ring provides a reliable seal. This type of fitting is typically installed by HVAC technicians, industrial maintenance mechanics, and pipefitters working with compressed air or general-purpose fluid lines.

This fitting is suited for general-purpose pneumatic and fluid control applications in both light industrial and commercial environments. The push-to-connect design allows for fast, tool-free tube insertion, reducing installation time on compressed air distribution lines, pneumatic valve manifolds, and similar systems. It is commonly used where a tube run must terminate at a male BSPT threaded component such as a valve body, manifold, or actuator port.

Key Features

• Push-to-connect design allows tool-free tube insertion and quick assembly
• Brass construction for durability and corrosion resistance in fluid and air service
• Rated to 150 psi maximum working pressure
• Compatible with 10 mm outside diameter tubing
• Nitrile O-ring included for positive sealing
• Operating temperature range of 0 degrees F to 175 degrees F

Compatibility

Designed for general-purpose pneumatic and fluid systems accepting a male BSPT threaded connection with 10 mm outside diameter push-to-connect tubing.

Installation Notes

Installation is typically performed by a licensed pipefitter, HVAC technician, or industrial maintenance mechanic. Depressurize and isolate the system completely before removing or installing any fittings. Ensure tube ends are cut square and free of burrs before inserting into the push-to-connect collet. Verify thread compatibility between BSPT and the mating port before assembly, as BSPT is not directly interchangeable with NPT threads.
