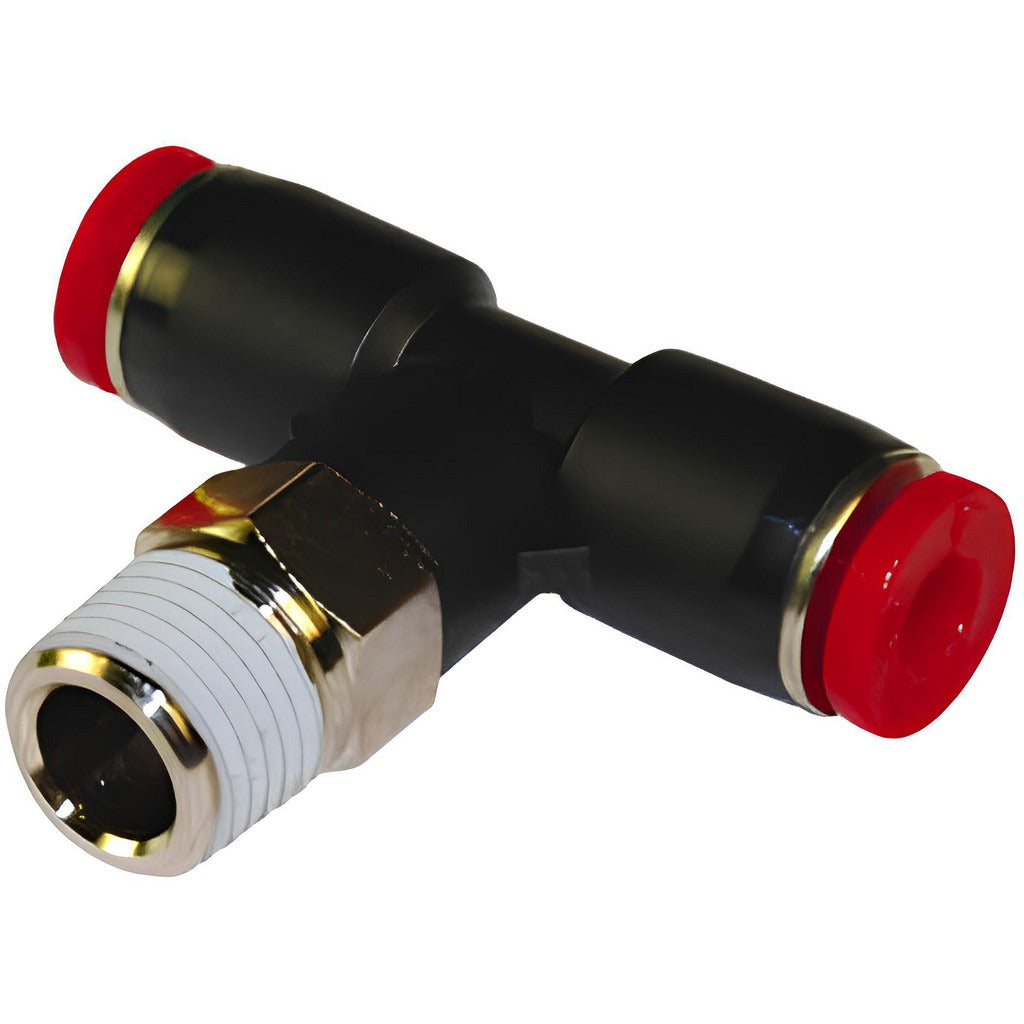

Norgren C01670638 Push-to-connect Tube Fitting Bspt

Product Description

The NORGREN C01670638 is a push-to-connect tube fitting with a male BSPT threaded end, designed for use in general-purpose pneumatic and fluid systems. The fitting connects tubing on both ends via push-to-connect action while transitioning to a male BSPT thread at the center connection point. Constructed from brass, it handles a maximum working pressure of 150 psi and is rated for operating temperatures from 0 degrees F to 175 degrees F. A nitrile O-ring provides the sealing element at the tube connections. This fitting is typically installed by mechanical contractors, HVAC technicians, and industrial maintenance professionals working with compressed air or fluid distribution lines.

This fitting is suited for general-purpose pneumatic, compressed air, and fluid control applications where a push-to-connect tube interface is needed alongside a male BSPT threaded port. It accommodates tubing with a 6 mm outside diameter. The BSPT thread form is commonly found in pneumatic control systems, instrumentation lines, and light industrial fluid circuits. Its compact brass construction makes it a reliable choice for routing lines in tight spaces where quick tube insertion speeds up assembly.

Key Features

• Push-to-connect on both tube ports for fast, tool-free tube insertion and release
• Male BSPT threaded connection for integration with standard BSPT ported components
• Brass construction for corrosion resistance in pneumatic and fluid service
• Nitrile O-ring sealing for compatibility with air and common hydraulic fluids
• Rated to 150 psi maximum working pressure
• Wide temperature range: 0 degrees F to 175 degrees F

Compatibility

Designed for general-purpose pneumatic and fluid systems using 6 mm outside diameter tubing with BSPT threaded port connections. Consult system documentation to confirm thread engagement and tubing wall thickness before installation.

Installation Notes

Installation should be performed by a qualified mechanical technician or plumber familiar with pneumatic or fluid piping systems. Depressurize and isolate the line before removing or installing any fitting. Ensure tubing is cut cleanly and squarely and inserted fully into the push-to-connect port until it seats against the internal stop. Verify BSPT thread engagement and apply appropriate thread sealant per system requirements and applicable codes.
