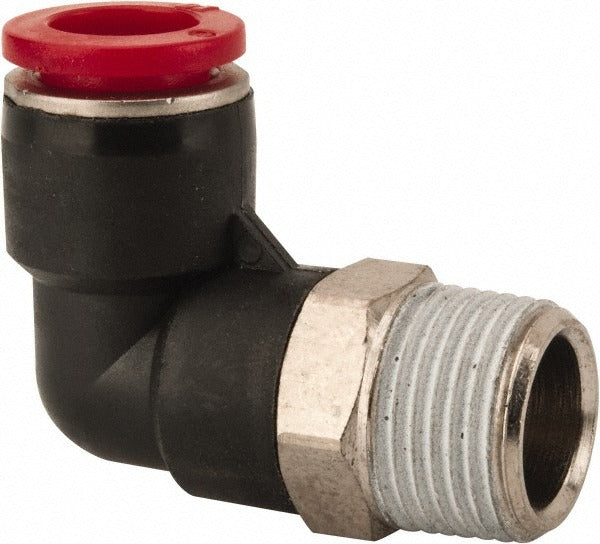

Norgren C01471038 90 Swivel Elbow Bspt Brass Fitting

Product Description

The NORGREN C01471038 is a brass push-to-connect 90-degree swivel elbow tube fitting designed for pneumatic and fluid conveyance systems. It connects tube-to-male BSPT configurations, allowing a 90-degree directional change in a line while maintaining a swivel action for easier alignment during installation. The fitting handles a maximum working pressure of 150 psi and accommodates a tube outside diameter of 10 millimeters. With a nitrile O-ring seal and full brass construction, it suits compressed air, water, and compatible fluid lines where a compact, reliable elbow connection is needed. Mechanical contractors, plumbers, and pneumatic system technicians are the typical installers.

This fitting is suited for residential and light commercial pneumatic or fluid system applications where a 90-degree directional change is required at a male BSPT threaded port. The 3/8 inch BSPT male thread and 10 millimeter tube outside diameter make it compatible with standard metric tube runs. The swivel feature reduces stress on tubing during assembly and allows fine adjustment of tube routing after initial connection. It performs across a temperature range of 0 degrees F to 175 degrees F, making it viable in both ambient indoor environments and moderately demanding service conditions.

Key Features

• Push-to-connect design for fast, tool-free tube insertion and secure retention
• 90-degree swivel elbow allows post-installation tube direction adjustment
• Brass body construction for corrosion resistance in air and compatible fluid service
• Nitrile O-ring seal provides reliable leak-resistant performance
• Rated to 150 psi maximum working pressure
• Operating temperature range of 0 degrees F to 175 degrees F

Compatibility

Designed as an OEM-style replacement or direct-fit push-to-connect elbow fitting for pneumatic and fluid systems using 10 millimeter outside diameter tubing with a 3/8 inch BSPT male threaded port connection.

Installation Notes

Installation should be performed by a qualified mechanical or pneumatic system technician. Depressurize and isolate the system completely before removing any existing fittings or inserting this component. Ensure the tube end is cut cleanly and squarely and that the outside diameter is free of burrs before inserting into the push-to-connect collet. Confirm BSPT thread engagement is appropriate and that the swivel body is oriented before final tube seating to avoid twisting the line under pressure.
