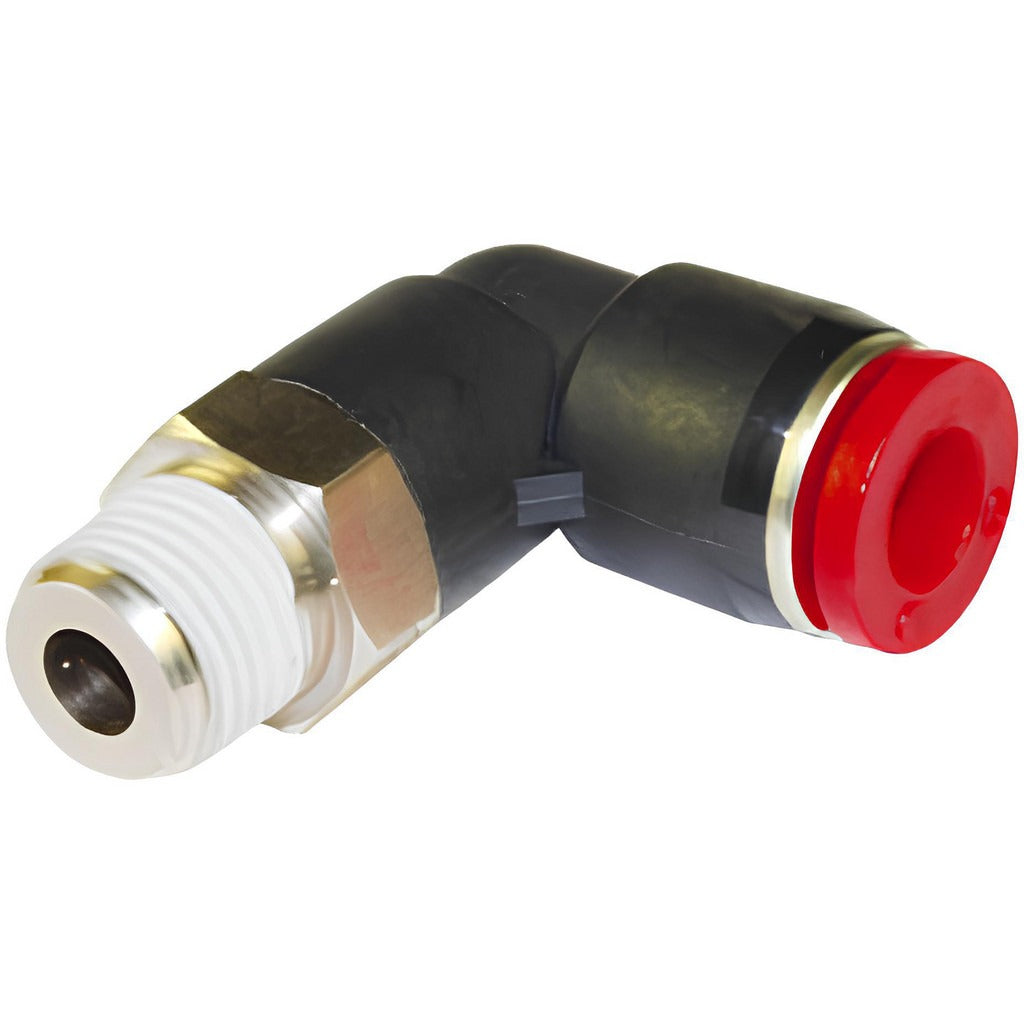

Norgren C01470628 90 Swivel Elbow Push-to-connect 1/4 Bspt

Product Description

The NORGREN C01470628 is a push-to-connect 90-degree swivel elbow tube fitting designed for pneumatic and fluid transfer lines in general-purpose industrial and trade applications. Constructed from brass, this fitting connects tubing to a male BSPT-threaded port at a right angle, with a swivel function that simplifies alignment during installation. It is rated to 150 psi maximum working pressure and handles temperatures from 0 degrees F to 175 degrees F. The nitrile O-ring provides a reliable seal across this temperature range. Plumbers, pipefitters, and pneumatic system technicians working with BSPT-threaded connections will find this fitting straightforward to install without special tooling.

This fitting is suited for general-purpose pneumatic lines, compressed air distribution, and fluid handling systems where a 90-degree directional change is required at a male BSPT port. The push-to-connect design accepts 6 mm outside diameter tubing, allowing fast, tool-free tube insertion. The swivel elbow body allows the fitting to rotate after assembly, reducing stress on tubing runs and making it easier to achieve proper routing in tight spaces or panel installations.

Key Features

• Push-to-connect design for fast, tool-free tube insertion
• Swivel elbow body rotates post-assembly for flexible tube routing
• Brass construction for corrosion resistance in air and fluid service
• Nitrile O-ring seal rated for 0 degrees F to 175 degrees F operating range
• 150 psi maximum working pressure
• BSPT male thread for compatibility with BSP-standard ported equipment

Compatibility

Designed for general-purpose pneumatic and fluid systems using 6 mm outside diameter tubing with male BSPT-threaded ports rated for push-to-connect fittings up to 150 psi.

Installation Notes

Installation should be performed by a qualified pipefitter or pneumatic systems technician. Depressurize the system fully before removing or installing any fittings. Insert tubing straight into the collet until it bottoms out to ensure a secure connection; angled insertion can compromise the seal. Thread engagement at the BSPT port should be made hand-tight and then wrench-tightened carefully to avoid overtightening brass threads.
